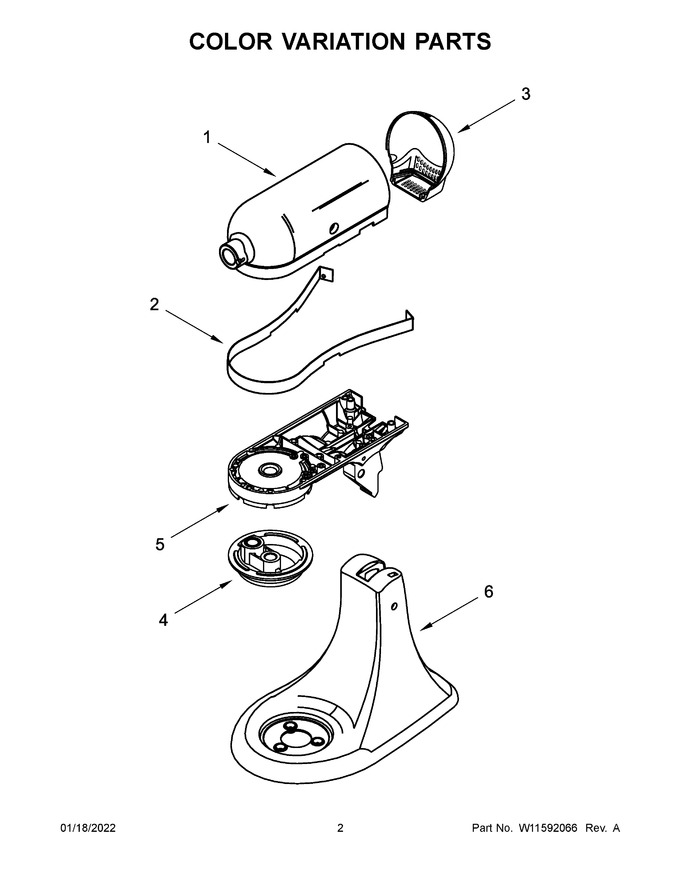

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 24029116 | Motor Housing (almond Cream/crÃme) |
|
- | |||||
| 2 | W11188411 | Trim Band (platinum) (Replaces: W10863292) |
|
- | |||||
| 3 | 24025316 | End Cover (almond Cream/crÃme) |
|
- | |||||
| 4 | 24028618 | Planetary (almond Cream/crÃme) |
|
- | |||||
| 5 | 24035062 | Lower Gearcase (almond Cream/crÃme) |
|
- | |||||
| 6 | 9703248 | Pedestal (almond Cream/crÃme) |
|
- | |||||
| 1A | 24029121 | Motor Housing (empire Red) |
|
- | |||||
| 1B | 24029113 | Motor Housing (onyx Black) |
|
- | |||||
| 3A | 24025322 | End Cover (empire Red) |
|
- | |||||
| 3B | 24025314 | End Cover (onyx Black) |
|
- | |||||
| 4A | 24028623 | Planetary (empire Red) |
|
- | |||||
| 4B | 24028616 | Planetary (onyx Black) |
|
- | |||||
| 5A | 24035091 | Lower Gearcase (empire Red) |
|
- | |||||
| 5B | 24035056 | Lower Gearcase (onyx Black) |
|
- | |||||
| 6A | 9703245 | Pedestal (empire Red) |
|
- | |||||
| 6B | W11205080 | Pedestal (onyx Black) (Replaces: 3184275) |
|
- |
