01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
04 - Supplemental Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

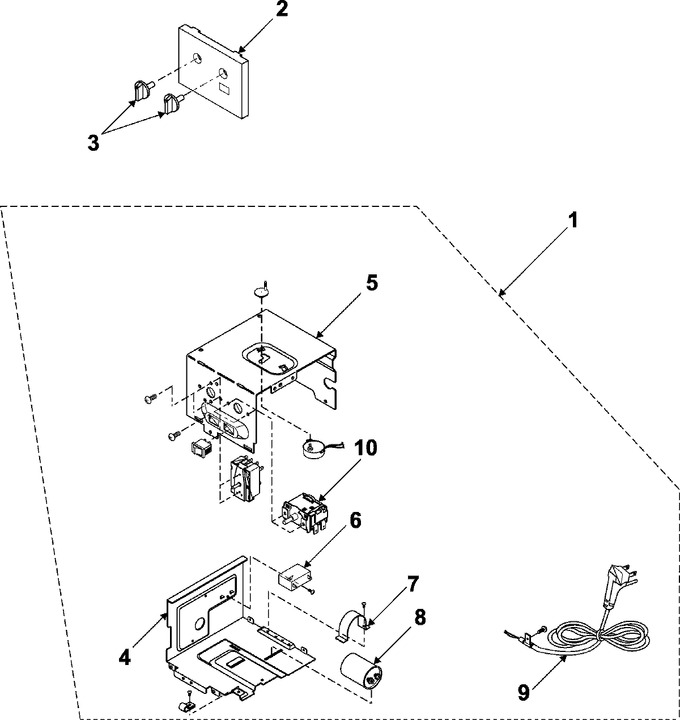

| 1 | DB93-00686A | Assy Control |
|
- | |||||
| 2 | DB64-00260A | Panel Control-j(mo) |
|
- | |||||
| 3 | DB64-50138A | Knob, Thermostat |
|
$ 4.62 | |||||
| 4 | DB61-00417A | Case Control-low |
|
- | |||||
| 5 | DB61-00420A | Case Control-up J(m) |
|
- | |||||
| 6 | 2301-001448 | C-film,mpe-ppf |
|
- | |||||
| 7 | DB65-10008B | Clip-capacitor |
|
- | |||||
| 8 | 2501-001229 | Capacitor (oil) |
|
- | |||||
| 9 | DB39-00343B | Power Cord-ass`y |
|
- | |||||
| 10 | 3406-001045 | Switch, Rotary (240v) |
|
$ 47.74 |
