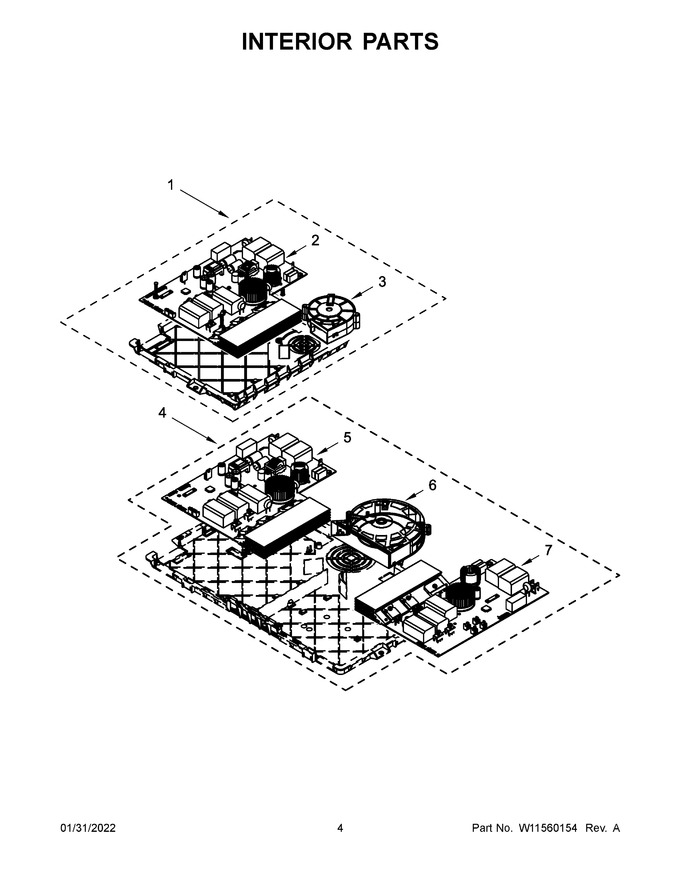

03 - Interior Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | W11739786 | Power Board (ascari) (Replaces: W11470156) |
|
Immediately | $ 881.14 | ||||
| 3 | W11251205 | Blower Assembly (domino) |
|
Immediately | $ 182.86 | ||||
| 4 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 5 | W11591149 | Power Board (ascari) (Replaces: W11474692) |
|
$ 387.77 | |||||
| 6 | W11246545 | Blower Assembly |
|
Immediately | $ 310.94 | ||||
| 7 | W11591150 | Power Board (farina) (Replaces: W11470135) |
|
$ 392.07 | |||||
| NI | W11347982 | Jumper Harness (hmi To Ipc) |
|
Immediately | $ 59.90 | ||||
| NI | W11249832 | Communication Harness (ipc2 To Ipc3) |
|
Immediately | $ 36.48 | ||||
| NI | W11348005 | Jumper Harness (ipc Oddjob) |
|
- | |||||
| NI | W11249830 | Communication Harness (ipc1 To Ipc2) |
|
$ 52.94 | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- |
