01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

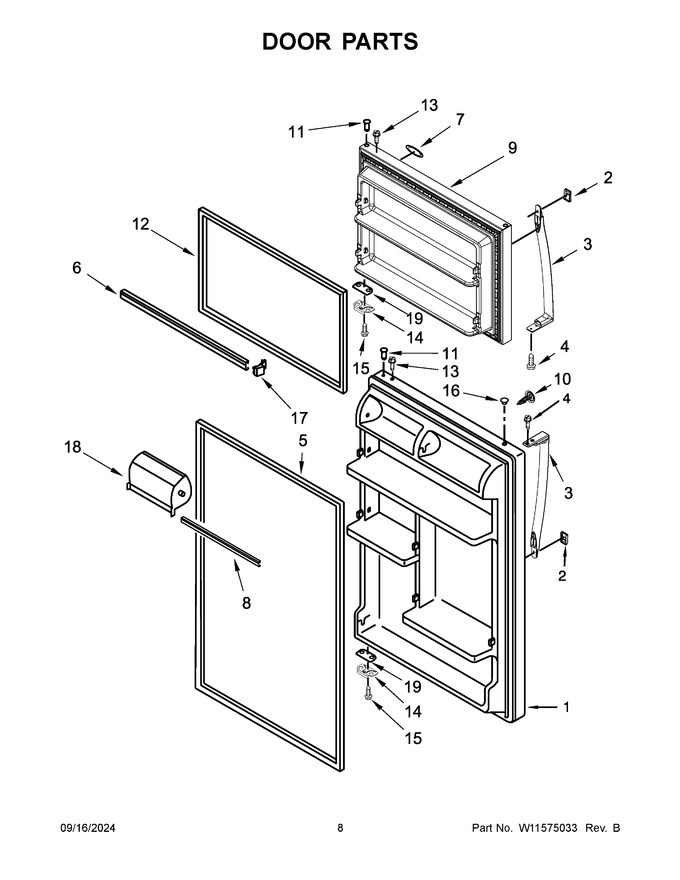

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10573360 | Refrigerator Door (includes Door Gasket) (white) (Replaces: W10573360) |
|
$ 677.22 | |||||
| 2 | WPW10672338 | Handle, Trim (white) (Replaces: W10672338) |
|
Immediately | $ 29.91 | ||||
| 3 | WPW10672333 | Handle, Door (white) (Replaces: W10672333) |
|
Immediately | $ 230.40 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | WP2319265T | Gasket, Door (white) (Replaces: 2264728) |
|
Immediately | $ 233.76 | ||||
| 6 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 120.57 | ||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 127.34 | ||||
| 9 | LW10580704 | Freezer Door (includes Door Gasket) (white) (Replaces: W10580704) |
|
$ 632.35 | |||||
| 10 | W10830984 | Plug, Hole (white) (Replaces: W10663736) |
|
$ 8.38 | |||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 12 | WP2319263W | Gasket, Door (white) (Replaces: 2264726) |
|
Immediately | $ 265.20 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 16 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 18 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 73.21 | ||||
| 19 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 10A | W10830983 | Plug, Hole (black) (Replaces: W10663737) |
|
$ 19.54 | |||||
| 10B | W10830982 | Plug, Hole (grey) (Replaces: W10663739) |
|
Immediately | $ 19.54 | ||||
| 12A | WP2319263B | Gasket, Door (black) (Replaces: 2264722) |
|
$ 268.28 | |||||
| 12B | W11661186 | Gasket, Door (grey) (Replaces: W10244875) |
|
Immediately | $ 230.06 | ||||
| 16A | WP2212651 | Plug, Hole (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 16B | WP2254517 | Plug, Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 19A | 2258681B | Shim, Door Stop (black) |
|
$ 45.33 | |||||
| 1A | LW10570564 | Refrigerator Door (includes Door Gasket) (black) (Replaces: W10570564) |
|
$ 637.09 | |||||
| 1B | W11371674 | Refrigerator Door (includes Door Gasket) (stainless) (Replaces: W10917422) |
|
$ 626.37 | |||||
| 2A | W10838316 | Handle, Trim (black) (Replaces: W10672339) |
|
$ 31.08 | |||||
| 2B | W11519504 | Handle, Trim (gray) (Replaces: W11374428) |
|
Immediately | $ 50.43 | ||||
| 3A | WPW10672334 | Handle, Door (black) (Replaces: W10672334) |
|
$ 227.34 | |||||
| 3B | W11026870 | Handle, Door (stainless) (Replaces: W10918266) |
|
$ 211.41 | |||||
| 5A | 2319265B | Gasket, Door (black) (Replaces: 2264724) |
|
$ 329.50 | |||||
| 5B | W11447196 | Gasket, Door (grey) (Replaces: W11084000) |
|
$ 294.13 | |||||
| 9A | LW10580702 | Freezer Door (includes Door Gasket) (black) (Replaces: W10580702) |
|
$ 648.47 | |||||
| 9B | W11371693 | Freezer Door (includes Door Gasket) (stainless) (Replaces: W10917423) |
|
$ 425.43 |
