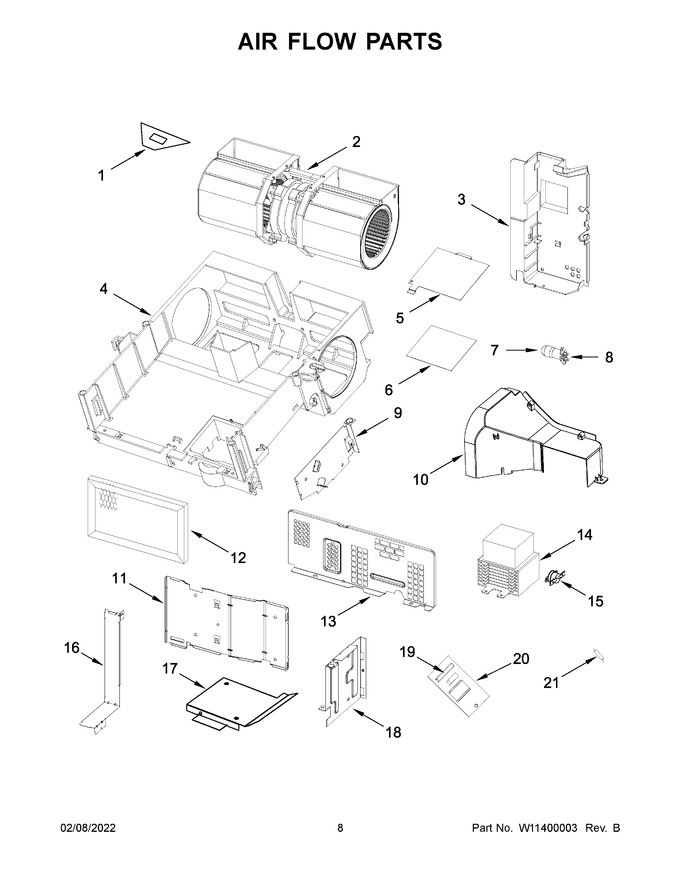

05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10810142		Socket, Motor Wire		Appelez-nous	-
2	W11442100		Motor, Fan   (Replaces: W11109701)			Immediately	$ 205.45
3	W11292618		Air Guide, Lower		Appelez-nous	-
4	W11268295		Baseplate, Air Guide				$ 58.79
5	8206382		Cover, Lamp				$ 9.17
6	W11391720		Glass, Cavity Lamp   (Replaces: W11268331)		Appelez-nous	-
7	8206232A		Lamp, Cavity   (Replaces: 4393681)			Immediately	$ 7.71
8	WPW10210878		Socket, Cavity Lamp   (Replaces: W10210878)			Immediately	$ 34.87
9	W11293488		Cover, Right Duct				$ 84.08
10	W11283720		Deflector, Air		Appelez-nous	-
11	W11268306		Plate, Air Guide Sealing		Appelez-nous	-
12	W10892387		Filter, Charcoal   (Replaces: W10845250)			Immediately	$ 17.72
13	W10342991		Shield, Finger				$ 169.83
14	W11391717		Magnetron   (Replaces: W10638903)			Immediately	$ 254.28
15	W11679669		Thermostat, Magnetron   (Replaces: W11360415)				$ 43.74
16	W10828038		Cover, Airguide Inlet		Appelez-nous	-
17	W11314197		Support, Sensor		Appelez-nous	-
18	W11268304		Guide, Air		Appelez-nous	-
19	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
20	WPW10531156		Board, Filter   (Replaces: W10531156)			Immediately	$ 56.88
21	W11256462		Diode, High Voltage   (Replaces: W11222648)			Immediately	$ 34.86
