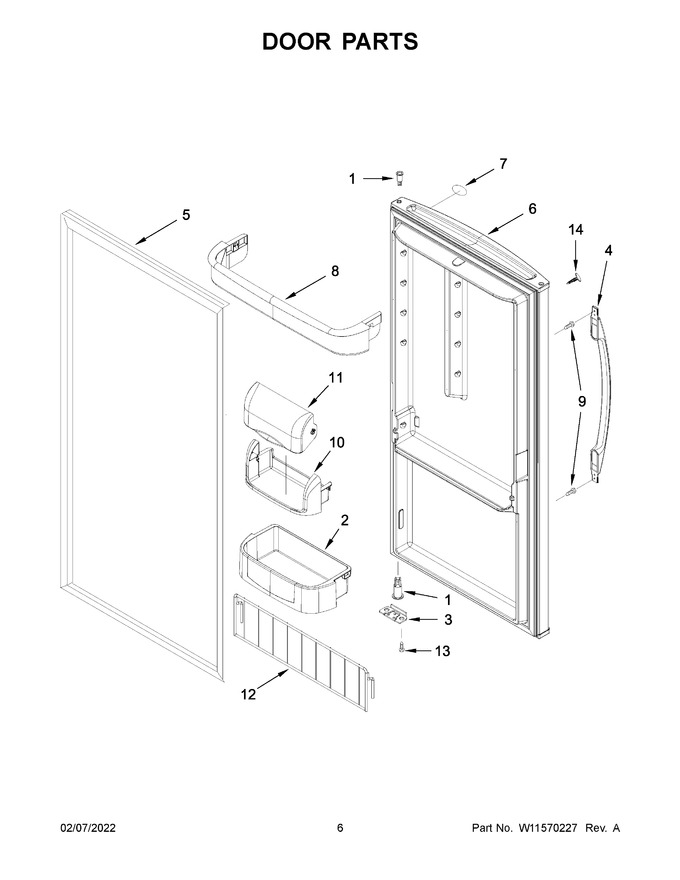

04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 2 | 67001141 | Bucket, Small (Replaces: 12557202) |
|
Immediately | $ 78.91 | ||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 26.32 | |||||
| 4 | W10858385 | Handle, Door (white) (Replaces: W10612702) |
|
$ 249.07 | |||||
| 5 | W10856583 | Gasket, Door (white) (Replaces: W10574474) |
|
Immediately | $ 320.46 | ||||
| 6 | W10869751 | Door Assembly (white) (Replaces: W10854780) |
|
$ 1,179.62 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 8 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 9 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 10 | WP67001279 | Tray, Dairy (Replaces: 12369502) |
|
Immediately | $ 88.01 | ||||
| 11 | W10612074 | Lid |
|
$ 117.78 | |||||
| 12 | W10574673 | Door, Pizza Shelf |
|
$ 241.14 | |||||
| 13 | 7101P35660 | Screw |
|
- | |||||
| 14 | W10830984 | Hole Plug, Handle (white) (Replaces: W10663736) |
|
$ 8.38 | |||||
| 2A | WP67001021 | Bucket, Medium (Replaces: 12557204) |
|
$ 84.95 |
