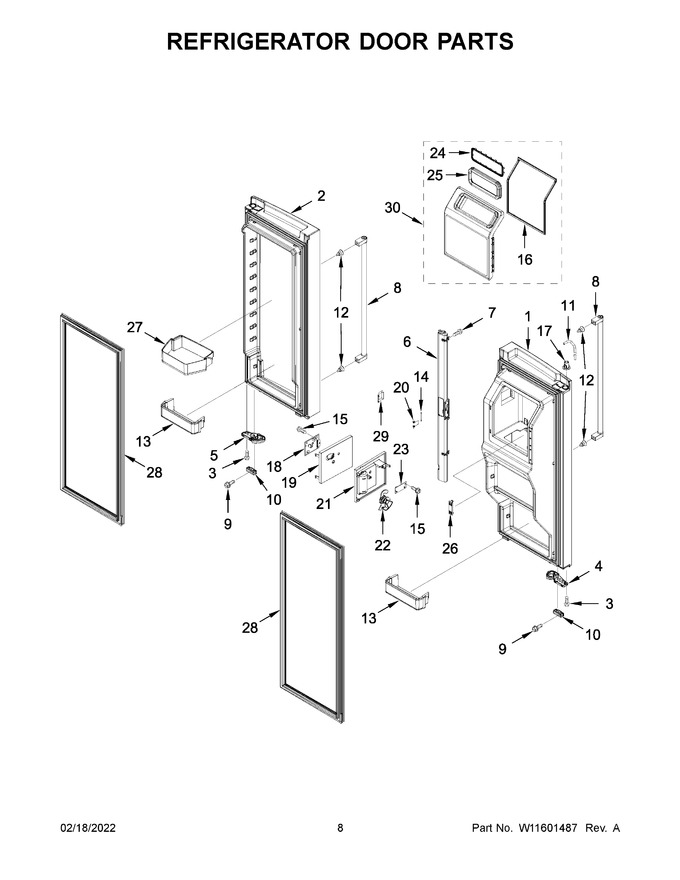

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11681451 | Door, Refrigerator (includes Door Gasket) Left Hand (black Stainless) (Replaces: W11381839) |
|
Immediately | $ 1,138.50 | ||||
| 2 | W11681450 | Door, Refrigerator (includes Door Gasket) Right Hand (black Stainless) (Replaces: W11381837) |
|
$ 1,085.92 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 4 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 18.04 | |||||
| 5 | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 17.59 | |||||
| 6 | W10907531 | Mullion, Door (black) (Replaces: W10902032) |
|
$ 154.43 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11483532 | Handle, Door (stainless) (Replaces: W11339138) |
|
Immediately | $ 178.01 | ||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 11 | W10394073 | Tube, Water |
|
$ 126.25 | |||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 13 | W11680598 | Trivet, 2 Liter (Replaces: W11373152) |
|
Immediately | $ 105.30 | ||||
| 14 | W10331749 | Pin, Door |
|
- | |||||
| 15 | 2006254 | Screw (Replaces: 12993001) |
|
$ 13.79 | |||||
| 16 | W11625019 | Gasket, Ice Door (Replaces: W10567561) |
|
$ 51.72 | |||||
| 17 | W11315302 | Clip, Tube |
|
- | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 328.97 | ||||
| 19 | W10563326 | Cover, Receiver |
|
$ 22.76 | |||||
| 20 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 21 | W10563309 | Cover, Emitter |
|
$ 27.35 | |||||
| 22 | W10563328 | Slide, Icemaker Shut Off |
|
$ 231.76 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10832970) |
|
Immediately | $ 222.54 | ||||
| 24 | W11504381 | Retainer, Ice Chute (Replaces: W10562839) |
|
$ 16.14 | |||||
| 25 | W11706282 | Gasket, Ice Chute (Replaces: W10567563) |
|
$ 127.45 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646867) |
|
Immediately | $ 23.16 | ||||
| 27 | W11680597 | Bucket, Gallon (Replaces: W11373151) |
|
Immediately | $ 182.72 | ||||
| 28 | W10861004 | Gasket, Door (black) (Replaces: W10873939) |
|
$ 331.17 | |||||
| 29 | W10563323 | Door, Emitter |
|
$ 135.47 | |||||
| 30 | W11679939 | Door, Ice (Replaces: W11373132) |
|
$ 227.93 | |||||
| 10A | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 | ||||
| 1A | W11681454 | Door, Refrigerator (includes Door Gasket) Left Hand (stainless Steel) (Replaces: W11381838) |
|
$ 1,133.68 | |||||
| 28A | W10407212 | Gasket, Door (grey) (Replaces: W10873938) |
|
Immediately | $ 254.40 | ||||
| 2A | W11681453 | Door, Refrigerator (includes Door Gasket) Right Hand (stainless Steel) (Replaces: W11381836) |
|
$ 1,081.68 | |||||
| 6A | W10849525 | Mullion, Door (grey) (Replaces: W10698201) |
|
$ 155.62 |
