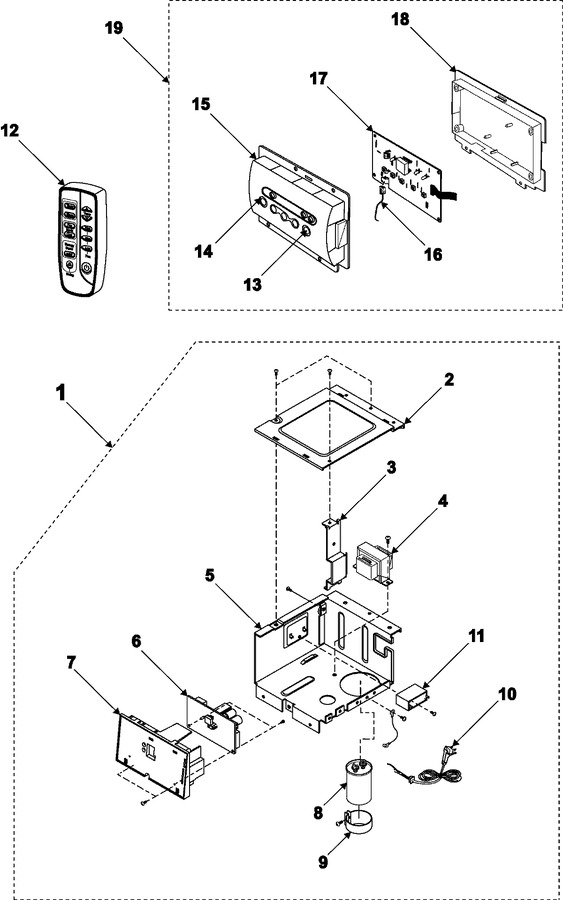

01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB93-01633D | Assy Control |
|
- | |||||
| 2 | DB61-00670A | Case Control-up |
|
- | |||||
| 3 | DB61-00676A | Bracket-control |
|
- | |||||
| 4 | DB26-00006G | Trans-power (ac115v,50/60hz) |
|
$ 96.33 | |||||
| 5 | DB61-00669A | Case Control-low |
|
- | |||||
| 6 | DB93-01492A | Assy Pcb Main-rac |
|
- | |||||
| 7 | DB63-00511A | Cover-control |
|
- | |||||
| 8 | 2501-001230 | Capacitor (oil) |
|
$ 95.23 | |||||
| 9 | DB65-00031A | Clip-capacitor |
|
- | |||||
| 10 | DB39-00343E | Power Cord-ass`y |
|
- | |||||
| 11 | 2301-001452 | C-film,mpe-ppf |
|
- | |||||
| 12 | DB93-01364X | Assy Remocon |
|
$ 105.49 | |||||
| 13 | Y00000000 | See Note Part No. Db64-00564a Currently Not Available. Must Order Assypanel Control, Item No. 19. |
|
- | |||||
| 14 | Y00000000 | See Note Part No. Db64-00565a Currently Not Available. Must Order Assypanel Control, Item No. 19. |
|
- | |||||
| 15 | Y00000000 | See Note Part No. Db63-00514a Currently Not Available. Must Order Assypanel Control, Item No. 19. |
|
- | |||||
| 16 | DB32-10051D | Thermistor |
|
$ 12.60 | |||||
| 17 | DB93-01493A | Assy Pcb Panel-rac |
|
- | |||||
| 18 | Y00000000 | See Note Part No. Db63-00512a Currently Not Available. Must Order Assypanel Control, Item No. 19. |
|
- | |||||
| 19 | DB92-00395A | Assy Panel-control |
|
- |
