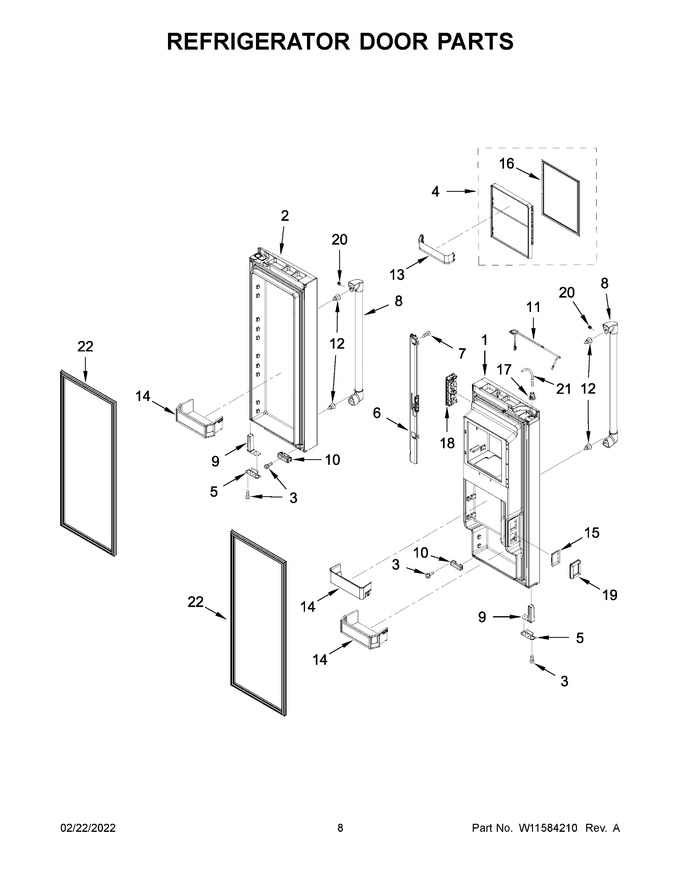

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11610988		Door, Refrigerator Left Hand (stainless (also Order Item #18))   (Replaces: W11475557)			Immediately	$ 1,377.52
2	W10849511		Door, Refrigerator Right Hand (stainless)   (Replaces: W10798253)				$ 1,176.08
3	WPW10238319		Screw   (Replaces: W10238319)				$ 7.18
4	W11594926		Assembly, Ice Door   (Replaces: W11554922)				$ 159.82
5	W11243377		Bracket, Door Stop   (Replaces: W10763415)			Immediately	$ 68.50
6	W11649966		Mullion, Door (grey)   (Replaces: W11034034)				$ 127.61
7	W11311945		Screw   (Replaces: 12990204)				$ 13.25
8	W11254134		Handle, Door (stainless)   (Replaces: W11238822)				$ 366.53
9	W11163783		Closer, Door (left Hand)   (Replaces: W10714907)			Immediately	$ 72.66
10	W10798308		Bumper, Door (grey)				$ 24.27
11	NP		Following Parts Not Illustrated		Appelez-nous	-
12	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.35
13	W10887799		Trivet, Ice Compartment Door   (Replaces: W10795606)			Immediately	$ 95.99
14	W10793381		Bin, Door (gallon)				$ 334.15
14	W10816355		Bin, Door (medium)			Immediately	$ 106.70
15	W10834283		Retainer, Door Duct				$ 32.11
16	W11714865		Gasket, Ice Door   (Replaces: W10853440)				$ 96.76
17	W11315303		Clip, Tube		Appelez-nous	-
18	W11585971		Assembly, Sparsh User Interface   (Replaces: W11423270)			Immediately	$ 290.97
19	W10828417		Gasket, Cooling Duct				$ 26.33
20	W10907991		Screw, Set   (Replaces: W10693137)				$ 6.80
21	W11518276		Tube, Dispenser Water				$ 83.51
22	W10917313		Gasket, Door (grey)			Immediately	$ 295.11
9A	W11188796		Closer, Door (right Hand)   (Replaces: W10714908)				$ 23.74
