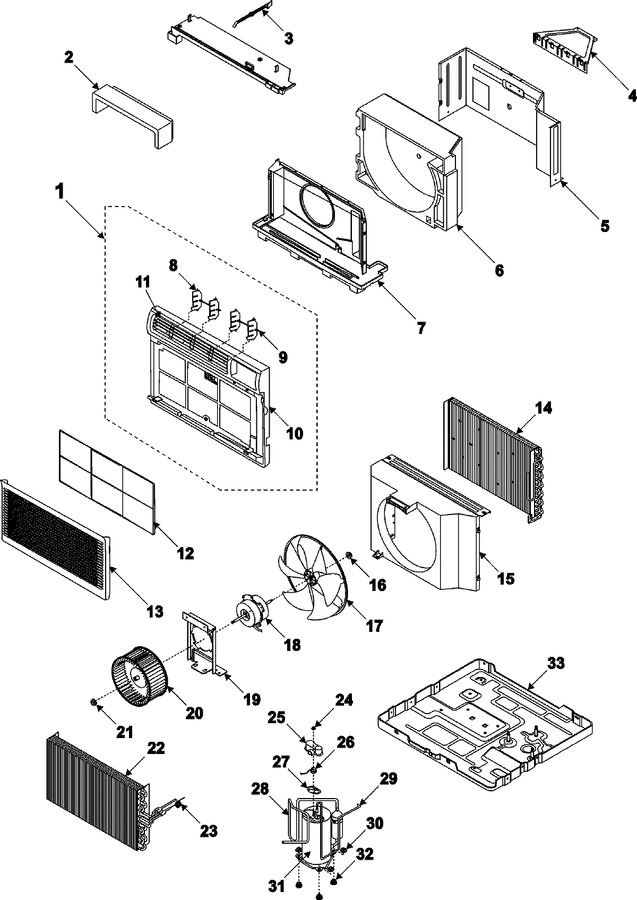

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-00397A		Assy Panel Front		Appelez-nous	-
2	DB61-00641A		Case Evap-up		Appelez-nous	-
3	DB66-00258A		Lever Damper		Appelez-nous	-
4	Y00000000		See Note Part No. Db71-00081a Currently Not Available.		Appelez-nous	-
5	DB71-00077B		Plate-partition		Appelez-nous	-
6	DB61-00640A		Case Evap		Appelez-nous	-
7	DB90-00509A		Assy-plate Evap Casing		Appelez-nous	-
8	Y00000000		See Note Part No. Db66-00369a Currently Not Available.		Appelez-nous	-
9	DB66-00259A		Link Blade		Appelez-nous	-
10	Y00000000		See Note Part No. Db64-00694a Currently Not Available.		Appelez-nous	-
11	DB61-01174A		Frame-blade		Appelez-nous	-
12	DB63-00617A		Guard-filter		Appelez-nous	-
13	Y00000000		See Note Part No. Db64-00693a Currently Not Available.		Appelez-nous	-
14	DB96-00982A		Assy Cond		Appelez-nous	-
15	DB61-00647A		Case Cond		Appelez-nous	-
16	DB60-00437A		Nut-flange   (Replaces: DB60-30020A)			Immediately	$ 5.57
17	DB67-00139A		Fan, Propeller				$ 121.92
18	DB31-00122A		Motor Fan		Appelez-nous	-
19	DB61-00650A		Mount-motor		Appelez-nous	-
20	DB67-50073A		Blower				$ 50.00
21	DB60-30004A		Nut-flange		Appelez-nous	-
22	DB96-01001A		Assy Evap		Appelez-nous	-
23	DB62-00688B		Tube Capillary		Appelez-nous	-
24	DB60-30001A		Nut-terminal Cover		Appelez-nous	-
25	DB63-10026A		Cover-terminal		Appelez-nous	-
26	DB35-00011D		Protector O/l;-,mra12132-12007		Appelez-nous	-
27	DB63-20003A		Gasket		Appelez-nous	-
28	DB62-00712A		Tube Suction		Appelez-nous	-
29	DB62-00327A		Tube Discharge		Appelez-nous	-
30	DB60-30028A		Nut-washer		Appelez-nous	-
31	44B098HX1EF		Rotary Compressor: 115v,1ph,60		Appelez-nous	-
32	DB73-00016A		Grommet-isolator		Appelez-nous	-
33	DB90-00514A		Assy Base		Appelez-nous	-
