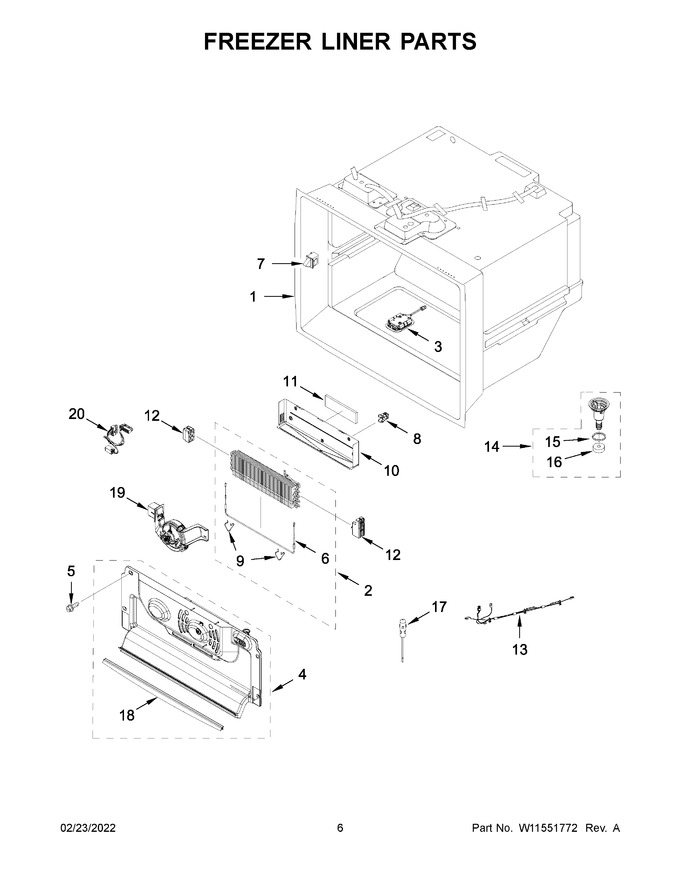

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 NP Following Parts Not Illustrated Appelez-nous -
2 W11565768 Assembly, Evaporator (also Order The Following Lokring Parts)   (Replaces: W11394385) Special Order $ 347.54

3 W11683243 Assembly, Led Light Module   (Replaces: W10843353) In-Stock Immediately $ 242.92

4 W11394920 Assembly, Evaporator Cover (includes Fan Motor And Wire Assembly)   (Replaces: W11209447) In-Stock Immediately $ 299.79

5 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 6.57

6 W11384694 Heater, Defrost Special Order $ 188.33

7 W11291142 Switch, Light   (Replaces: W10847855) Special Order $ 32.99

8 10623002 Clip, Evaporator Special Order $ 10.90

9 W11459749 Clip, Defrost Heater Appelez-nous -
10 W11483266 Sheild, Fc Heat Special Order $ 72.74

11 W10683540 Gasket, Drip Tray Rear Special Order $ 22.25

12 W11483265 Dam, Air (left Hand) Appelez-nous -
13 W11715973 Assembly, Evaporator Heater Wire (includes Thermistor)   (Replaces: W11410826) Special Order $ 92.52

14 W10503218 Assembly, Drain Funnel In-Stock Immediately $ 16.78

15 WPM0500703 Seal   (Replaces: M0500703) Special Order $ 10.32

16 WPB8381501 Gasket, Drain   (Replaces: B8381501) Special Order $ 7.00

17 W11318270 Thermistor   (Replaces: W10797088) In-Stock Immediately $ 108.12

18 W10770923 Seal, Crisp Front Special Order $ 25.70

19 W11407678 Assembly, Icebox Fan   (Replaces: W11206828) In-Stock Immediately $ 259.76

20 W10911358 Assembly, Evaporator Jumper Wire Special Order $ 122.51

12A W10668198 Dam, Air (right Hand) Special Order $ 47.18

2A W11506620 8 Nk Al 00 (capillary Tube To Evaporator - Cut/splice On Aluminum Portion Of Old Evaporator) In-Stock Immediately $ 28.89

2B W11506620 8 Nk Al 00 (capillary Tube To Evaporator - Cut/splice On Aluminum Portion Of Old Evaporator) In-Stock Immediately $ 28.89


    View Diagram in Separate Window     Print Icon   Print Part List
