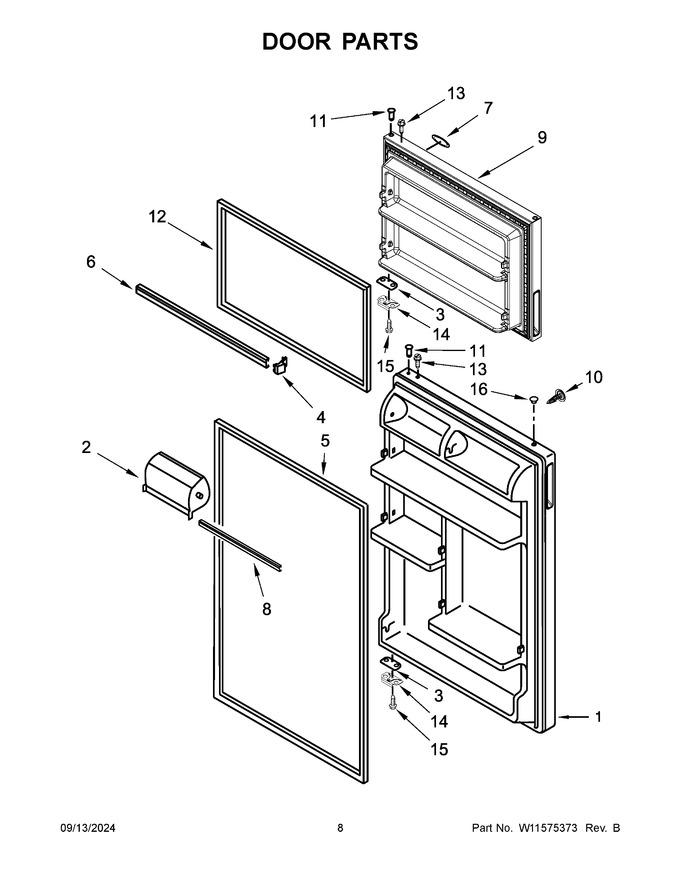

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10570557		Refrigerator Door (includes Door Gasket) (white)   (Replaces: W10570557)				$ 697.75
2	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 73.21
3	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 7.55
4	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
5	WP2319265T		Gasket, Door (white)   (Replaces: 2264728)			Immediately	$ 233.76
6	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 120.57
7	W11428492		Badge (white)   (Replaces: W11046244)				$ 83.57
8	W11129820		Trim, Door   (Replaces: W10719700)			Immediately	$ 127.34
9	LW10573399		Freezer Door (includes Door Gasket) (white)   (Replaces: W10573399)				$ 685.22
10	W10830984		Plug, Hole (white)   (Replaces: W10663736)				$ 8.38
11	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
12	WP2319263W		Gasket, Door (white)   (Replaces: 2264726)			Immediately	$ 265.20
13	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
16	WP2212648		Plug, Hole (white)   (Replaces: 2212648)			Immediately	$ 8.19
10A	W10830983		Plug, Hole (black)   (Replaces: W10663737)				$ 19.54
12A	WP2319263B		Gasket, Door (black)   (Replaces: 2264722)			Immediately	$ 268.28
16A	WP2212651		Plug, Hole (black)   (Replaces: 2212651)				$ 24.21
1A	LW10570495		Refrigerator Door (includes Door Gasket) (black)   (Replaces: W10570495)		Appelez-nous	-
3A	2258681B		Shim, Door Stop (black)				$ 45.33
5A	2319265B		Gasket, Door (black)   (Replaces: 2264724)				$ 329.50
9A	LW10570947		Freezer Door (includes Door Gasket) (black)   (Replaces: W10570947)		Appelez-nous	-
