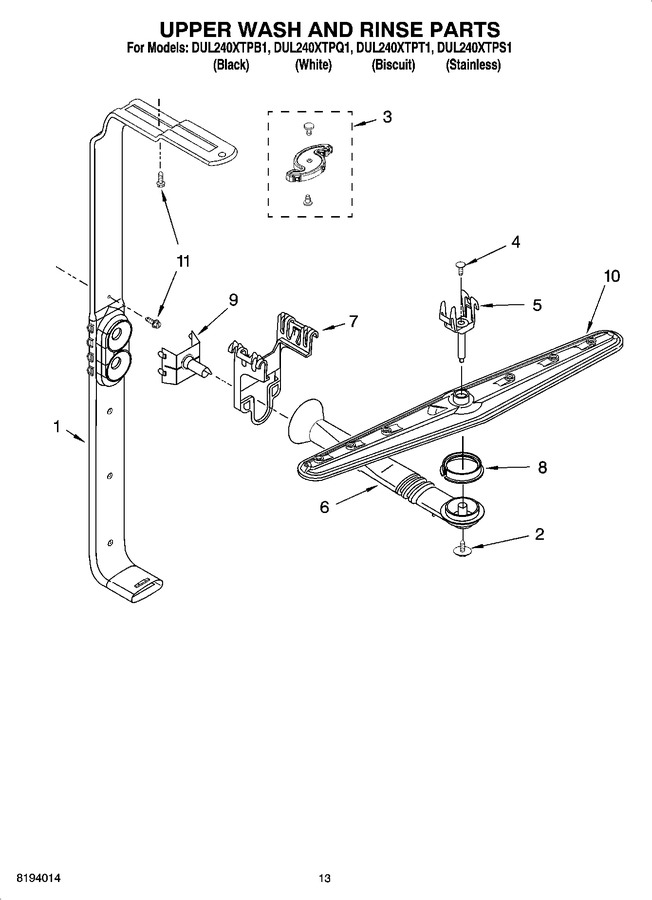

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8558968 | Feed Tube Assembly (also Includes Items 3 & 9) |
|
$ 73.77 | |||||
| 2 | WPW10349488 | Screw (Replaces: 8533889) |
|
$ 8.97 | |||||
| 3 | 8193983 | Spinner, 3rd Level Wash (Replaces: 8557720) |
|
Immediately | $ 25.27 | ||||
| 4 | WP3400919 | Cover, Screw (Replaces: 3400919) |
|
$ 11.20 | |||||
| 5 | WP8268321 | Mount (Replaces: 8268321) |
|
$ 105.45 | |||||
| 6 | WP8268326 | Manifold (Replaces: 8268326) |
|
$ 120.56 | |||||
| 7 | 8268325 | Holder, Feed Tube |
|
$ 5.84 | |||||
| 8 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.77 | ||||
| 9 | 8268293 | Nozzle |
|
$ 6.45 | |||||
| 10 | WP8269024 | Sprayarm (Replaces: 8269024) |
|
Immediately | $ 82.14 | ||||
| 11 | WP489443 | Screw (Replaces: 3400850) |
|
Immediately | $ 8.33 |
