01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts

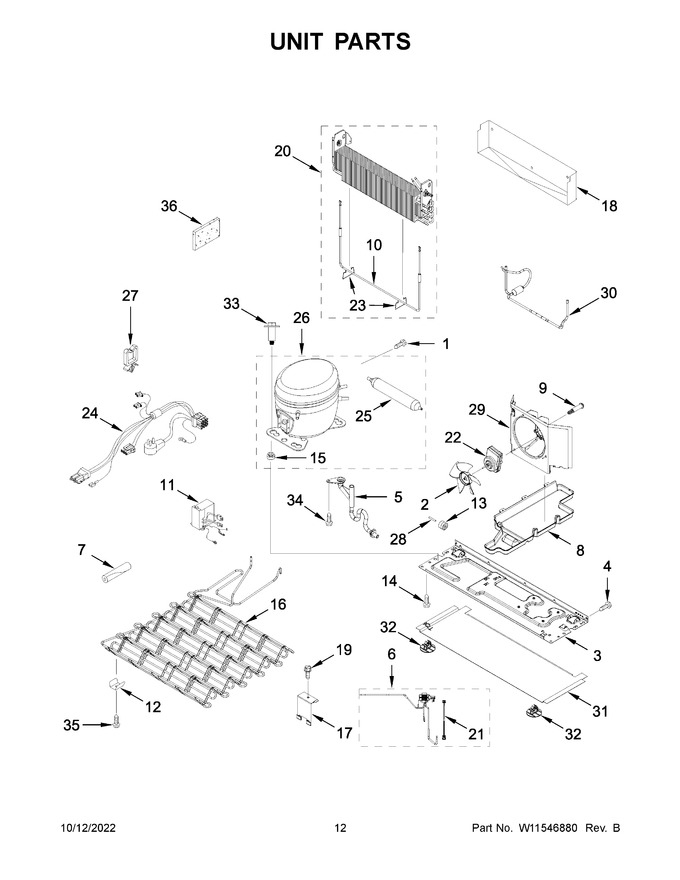

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141625		Screw   (Replaces: W10141625)				$ 22.22
2	WP2188935		Blade, Fan   (Replaces: 2188935)			Immediately	$ 97.29
3	W11411853		Baseplate, Compressor		Appelez-nous	-
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
5	W11745092		Extension, Drain   (Replaces: W10776916)				$ 81.62
6	W11575003		Assembly, 3 Way Valve (also Order The Following Lokring Parts)   (Replaces: W11401632)			Immediately	$ 111.18
7	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 21.32
8	W11225840		Tray, Evaporator   (Replaces: W10660727)			Immediately	$ 158.27
9	W10829281		Screw   (Replaces: W10622701)				$ 13.28
10	W11575359		Heater, Defrost   (Replaces: W11553968)				$ 119.70
11	W11578028		Assembly, Inverter Box   (Replaces: W11515300)			Immediately	$ 391.60
12	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 19.38
13	12477102		Roller			Immediately	$ 7.38
14	12992101		Screw		Appelez-nous	-
15	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
16	W11411956		Condenser (also Order The Following Lokring Parts)				$ 228.72
17	W10391376		Bracket, Valve				$ 35.03
18	W11408656		Tray, Drip				$ 45.58
19	W10142255		Screw		Appelez-nous	-
20	W11598434		Assembly, Evaporator And Heater (also Order The Following Lokring Parts)   (Replaces: W11394387)				$ 335.66
21	W11575713		Assembly, Rkv Valve Jumper Wire   (Replaces: W11516655)		Appelez-nous	-
22	W11127829		Motor, Condenser Fan   (Replaces: W11505535)			Immediately	$ 226.58
23	W11380964		Clip, Heater				$ 18.53
24	W11679643		Harness, Unit (includes Power Cord)   (Replaces: W11306946)			Immediately	$ 131.44
25	W11109499		Drier (service Drier Without Dye) (also Order The Following Lokring Parts)   (Replaces: W10805035)			Immediately	$ 39.12
26	W11578205		Compressor (also Order The Following Lokring Parts)   (Replaces: W11515413)			Immediately	$ 610.14
27	W11233642		Clip   (Replaces: 2223913)		Appelez-nous	-
28	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
29	WPW10406719		Shroud   (Replaces: W10406719)				$ 82.24
30	W11578029		Assembly, Suction Tube   (Replaces: W11323441)				$ 79.18
31	W10278140		Cover, Condenser (bottom)				$ 94.05
32	W10815861		Clip, Bottom Cover				$ 15.80
33	W11417341		Screw				$ 14.07
34	W10141518		Screw				$ 9.54
35	W11544659		Screw   (Replaces: W10142294)				$ 14.35
36	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
16A	W11504445		5/4 Nr Ms 00 (3-way Valve To Drier)			Immediately	$ 28.92
16B	W11504431		7/5 Nr Ms 00 (suction Line To Condenser)			Immediately	$ 27.13
20A	W11506620		Assembly, Evaporator And Heater (also Order The Following Lokring Parts)			Immediately	$ 32.10
20B	W11506620		Assembly, Evaporator And Heater (also Order The Following Lokring Parts)			Immediately	$ 32.10
25A	W11504445		5/4 Nr Ms 00 (3-way Valve To Drier)			Immediately	$ 28.92
25B	W11506623		5 Nk Ms 00 (3-way Valve To Drier)			Immediately	$ 22.00
26A	W11504431		7/5 Nr Ms 00 (suction Line To Condenser)			Immediately	$ 27.13
26B	W11504415		8.5/8 Nr Ms 00 (high Pressure Side To Compressor)			Immediately	$ 25.89
26C	W11506621		6 Nk Ms 00 (charging Tube To Compressor)			Immediately	$ 22.00
26D	W11506635		Tube, Charging (1/4" W/ Schrader Valve)			Immediately	$ 37.03
6A	W11506625		3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body)			Immediately	$ 20.94
6B	W11506625		3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body)			Immediately	$ 20.94
6C	W11504445		5/4 Nr Ms 00 (3-way Valve To Drier)			Immediately	$ 28.92
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
