View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts

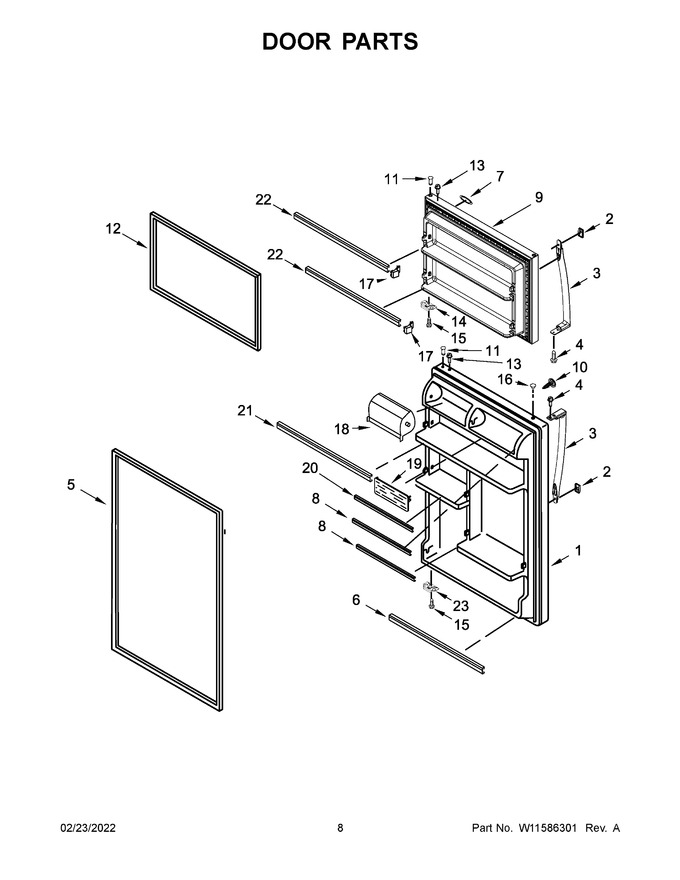

05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10636410 | Refrigerator Door (includes Door Gasket) (white) (Replaces: W10636410) |
|
$ 653.02 | |||||
| 2 | WPW10672338 | Handle, Trim (white) (Replaces: W10672338) |
|
Immediately | $ 28.49 | ||||
| 3 | WPW10672333 | Handle, Door (white) (Replaces: W10672333) |
|
Immediately | $ 189.08 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 5 | W10838574 | Gasket, Door (white) (Replaces: W10638676) |
|
Immediately | $ 88.27 | ||||
| 6 | W11097831 | Trim, Door (Replaces: W10719703) |
|
$ 11.71 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 121.28 | ||||
| 9 | LW10636409 | Freezer Door (includes Door Gasket) (white) (Replaces: W10636409) |
|
$ 635.48 | |||||
| 10 | W10830984 | Plug, Hole (white) (Replaces: W10663736) |
|
$ 7.98 | |||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 7.75 | |||||
| 12 | W10861499 | Gasket, Door (white) (Replaces: W10638675) |
|
Immediately | $ 98.40 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.94 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 16 | WP2212648 | Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 7.80 | ||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 12.62 | ||||
| 18 | WP2218113 | Door, Compartment (Replaces: 2218113) |
|
Immediately | $ 50.33 | ||||
| 19 | WP2188234 | Door, Flip Up (Replaces: 2188234) |
|
Immediately | $ 57.44 | ||||
| 20 | W11106290 | Trim, Shelf Door (Replaces: W10719701) |
|
Immediately | $ 121.28 | ||||
| 21 | W11170805 | Trim, Door (Replaces: W10678772) |
|
$ 121.28 | |||||
| 22 | W11126055 | Trim, Door (Replaces: W10719702) |
|
Immediately | $ 121.28 | ||||
| 23 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 65.53 | |||||
| 10A | W10830983 | Plug, Hole (black) (Replaces: W10663737) |
|
$ 18.61 | |||||
| 10B | W10830982 | Plug, Hole (grey) (Replaces: W10663739) |
|
Immediately | $ 18.61 | ||||
| 12A | W11229610 | Gasket, Door (black) (Replaces: W10667843) |
|
Immediately | $ 286.37 | ||||
| 12B | W11574983 | Gasket, Door (grey) (Replaces: W11030682) |
|
$ 87.97 | |||||
| 16A | WP2212651 | Plug, Hinge (black) (Replaces: 2212651) |
|
$ 23.06 | |||||
| 16B | WP2254517 | Plug, Hinge (grey) (Replaces: 2254517) |
|
Immediately | $ 23.18 | ||||
| 1A | LW10668874 | Refrigerator Door (includes Door Gasket) (black) (Replaces: W10668874) |
|
$ 839.88 | |||||
| 1B | W11575716 | Refrigerator Door (includes Door Gasket) (stainless) (Replaces: W11398750) |
|
$ 663.70 | |||||
| 2A | W10838316 | Handle, Trim (black) (Replaces: W10672339) |
|
$ 29.60 | |||||
| 2B | W11519504 | Handle, Trim (gray) (Replaces: W11374428) |
|
Immediately | $ 48.03 | ||||
| 3A | WPW10672334 | Handle, Door (black) (Replaces: W10672334) |
|
$ 216.51 | |||||
| 3B | W10806512 | Handle, Door (stainless) (Replaces: W10653470) |
|
Immediately | $ 201.04 | ||||
| 5A | W11240749 | Gasket, Door (black) (Replaces: W10678768) |
|
Immediately | $ 286.37 | ||||
| 5B | W11784834 | Gasket, Door (grey) (Replaces: W11030683) |
|
Immediately | $ 212.71 | ||||
| 9A | LW10668875 | Freezer Door (includes Door Gasket) (black) (Replaces: W10668875) |
|
$ 683.56 | |||||
| 9B | LW10638683 | Freezer Door (includes Door Gasket) (stainless) (Replaces: W10638683) |
|
$ 1,029.84 |
