Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11219664 Endcap (black (left))   (Replaces: W11130372) Special Order $ 153.83

2 W11230932 Bracket, Control   (Replaces: W10695491) In-Stock Immediately $ 84.81

3 W11242068 Console, Assembly (black)   (Replaces: W11027385) Special Order $ 351.95

4 WPW10434452 Switch, Infinite (dual) (left Front)   (Replaces: W10434452) In-Stock Immediately $ 140.84

5 W11158169 Knob (black)   (Replaces: W11022718) In-Stock Immediately $ 80.02

6 W11838708 Control, Electronic (lcx) (black)   (Replaces: W11515107) In-Stock Immediately $ 281.07

7 W10525121 Bracket, Console Mounting Special Order $ 98.85

8 W10134247 Shield, Heat In-Stock Immediately $ 358.82

9 WP3400882 Screw   (Replaces: 3400882) In-Stock Immediately $ 7.55

10 WP8272473 Cover, Upper Rear   (Replaces: 8272473) Special Order $ 219.04

11 W11233072 Screw   (Replaces: 3196178) In-Stock Immediately $ 14.72

1A W11219665 Endcap (black (right))   (Replaces: W11130379) Special Order $ 45.17

1B W11219365 Endcap (white (left))   (Replaces: W11130371) Special Order $ 42.45

1C W11219370 Endcap (white (right))   (Replaces: W11130378) Special Order $ 60.83

3A W11180282 Console, Assembly (white)   (Replaces: W11027386) In-Stock Immediately $ 529.80

4A 5500-287 Switch, Infinite (left Rear And Right Rear)   (Replaces: 3148951) In-Stock Immediately $ 52.39

4B WP3149400 Switch, Infinite (orange) (right Front)   (Replaces: 3148954) In-Stock Immediately $ 90.51

5A W11158173 Knob (white)   (Replaces: W11022720) In-Stock Immediately $ 21.54

6A W11583311 Control, Electronic (lcx) (white)   (Replaces: W11515106) In-Stock Immediately $ 337.29


    View Diagram in Separate Window     Print Icon   Print Part List

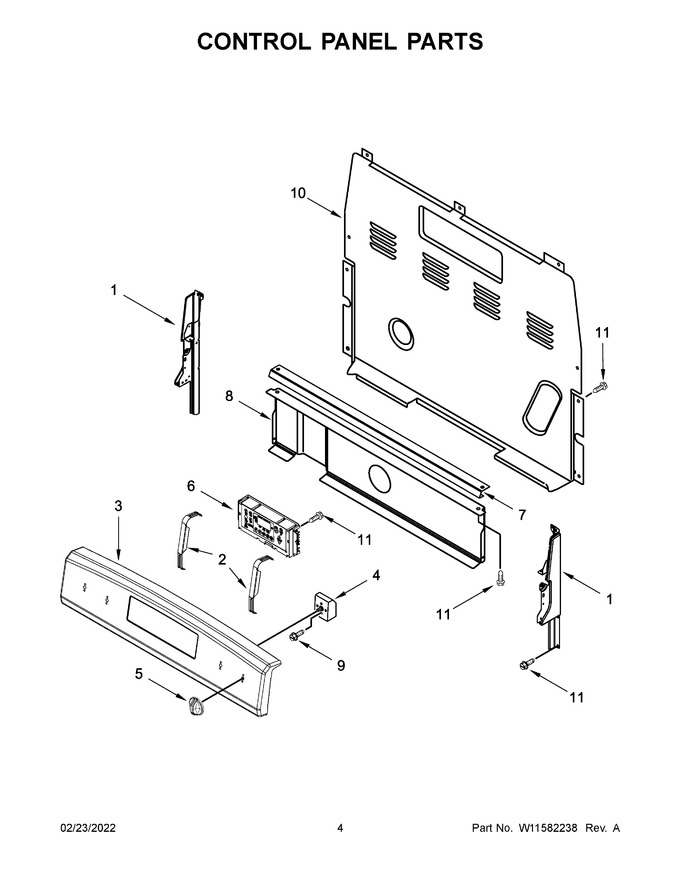

Diagram for WFE515S0JB3
