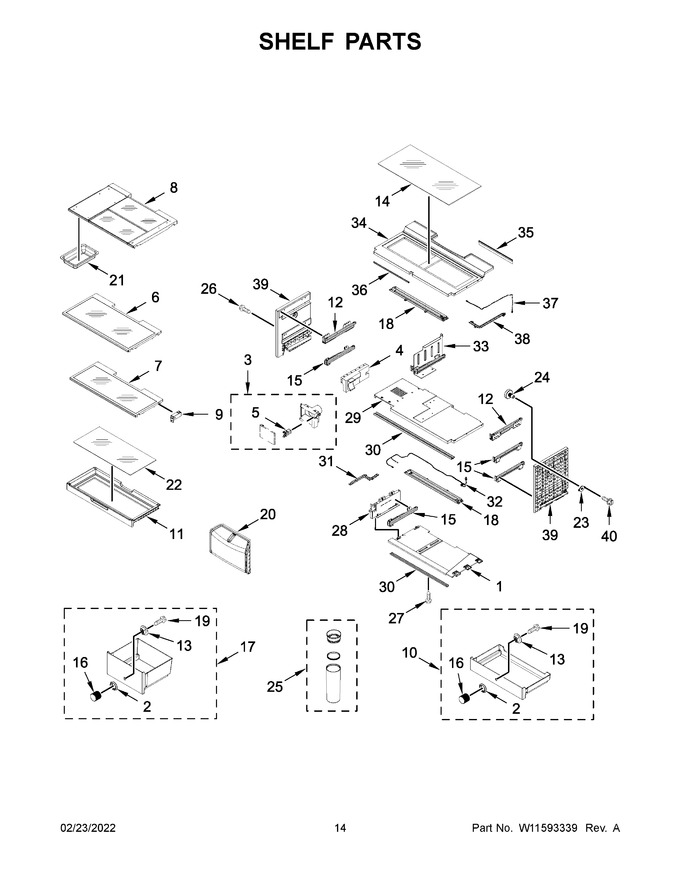

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10794563 | Base, Pantry |
|
$ 145.02 | |||||
| 2 | W10696184 | Ring, Handle |
|
- | |||||
| 3 | W11690901 | Assembly, Filter Door (Replaces: W11347069) |
|
Immediately | $ 115.61 | ||||
| 4 | W11084829 | Insulation, Filter Housing (Replaces: W10792132) |
|
- | |||||
| 5 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 108.76 | |||||
| 6 | W10887818 | Assembly, 15" Full Shelf (Replaces: W10793467) |
|
$ 305.55 | |||||
| 7 | W11284453 | Assembly, 12" Full Shelf (Replaces: W11116719) |
|
Immediately | $ 258.85 | ||||
| 8 | W11563404 | Assembly, Tuck Shelf (Replaces: W11367768) |
|
$ 708.92 | |||||
| 9 | W11226828 | Assembly, Block (front Left/back Right) (Replaces: W10817922) |
|
Immediately | $ 14.01 | ||||
| 10 | W11115323 | Pan, Pantry (Replaces: W10898655) |
|
$ 248.12 | |||||
| 11 | W11563405 | Assembly, Platter Shelf (Replaces: W11367790) |
|
$ 354.21 | |||||
| 12 | W10843722 | Glide, Platter (left Hand) |
|
$ 158.52 | |||||
| 13 | W10663641 | Spacer, Handle |
|
$ 24.82 | |||||
| 14 | W10887837 | Glass, Crisper Cover (Replaces: W10804533) |
|
Immediately | $ 218.11 | ||||
| 15 | W10866163 | Glide, Crisper (left Hand) (Replaces: W10816001) |
|
$ 145.63 | |||||
| 16 | W10903881 | Handle |
|
- | |||||
| 17 | W11115324 | Assembly, Crisper Pan (Replaces: W10918349) |
|
Immediately | $ 176.27 | ||||
| 18 | W11401419 | Assembly, Light (Replaces: W10901221) |
|
$ 171.71 | |||||
| 19 | W10903879 | Screw |
|
- | |||||
| 20 | W11462816 | Assembly, Produce Preserver (Replaces: W10826105) |
|
Immediately | $ 15.44 | ||||
| 21 | W11592414 | Pan, Under Shelf (Replaces: W11444736) |
|
$ 105.51 | |||||
| 22 | W10887839 | Glass, Platter (Replaces: W10794571) |
|
$ 218.11 | |||||
| 23 | W10840918 | Flange, Side Support |
|
$ 84.12 | |||||
| 24 | W10840920 | Knob, Side Support |
|
- | |||||
| 25 | W10882409 | Assembly, Herb Storage (includes Lid And Gasket) (Replaces: W10795580) |
|
$ 46.88 | |||||
| 26 | W10847999 | Screw |
|
$ 12.12 | |||||
| 27 | W10847999 | Screw (Replaces: W10804977) |
|
$ 12.12 | |||||
| 28 | W10794565 | Support, Pantry |
|
$ 144.39 | |||||
| 29 | W11084818 | Cover, Pantry (Replaces: W10794557) |
|
$ 119.72 | |||||
| 30 | W10794250 | Bar, Support |
|
$ 140.12 | |||||
| 31 | W10834719 | Cover, Wiring Harness |
|
- | |||||
| 32 | W11744510 | Assembly, Pantry Wire (includes Thermistor) (Replaces: W10779301) |
|
$ 103.00 | |||||
| 33 | W10794550 | Assembly, Center Support |
|
$ 252.55 | |||||
| 34 | W11084821 | Frame, Crisper Cover (Replaces: W10794547) |
|
Immediately | $ 200.34 | ||||
| 35 | W10794336 | Gasket, Crisper Cover (rear) |
|
- | |||||
| 36 | W10794242 | Gasket, Crisper Cover (front) |
|
$ 119.10 | |||||
| 37 | W10835866 | Jumper, Crisper Led |
|
- | |||||
| 38 | W10854845 | Cover, Wiring Harness |
|
- | |||||
| 39 | W10794553 | Support, Side (left Hand) |
|
$ 142.73 | |||||
| 40 | W10834285 | Screw (grey) |
|
$ 18.85 | |||||
| 12A | W10814862 | Glide, Platter (right Hand) |
|
$ 158.51 | |||||
| 15A | W10866166 | Glide, Crisper (right Hand) (Replaces: W10814857) |
|
$ 145.63 | |||||
| 39A | W10794555 | Support, Side (right Hand) |
|
$ 147.92 | |||||
| 9A | W11666273 | Assembly, Block (front Right/back Left) (Replaces: W10817921) |
|
$ 13.97 |
