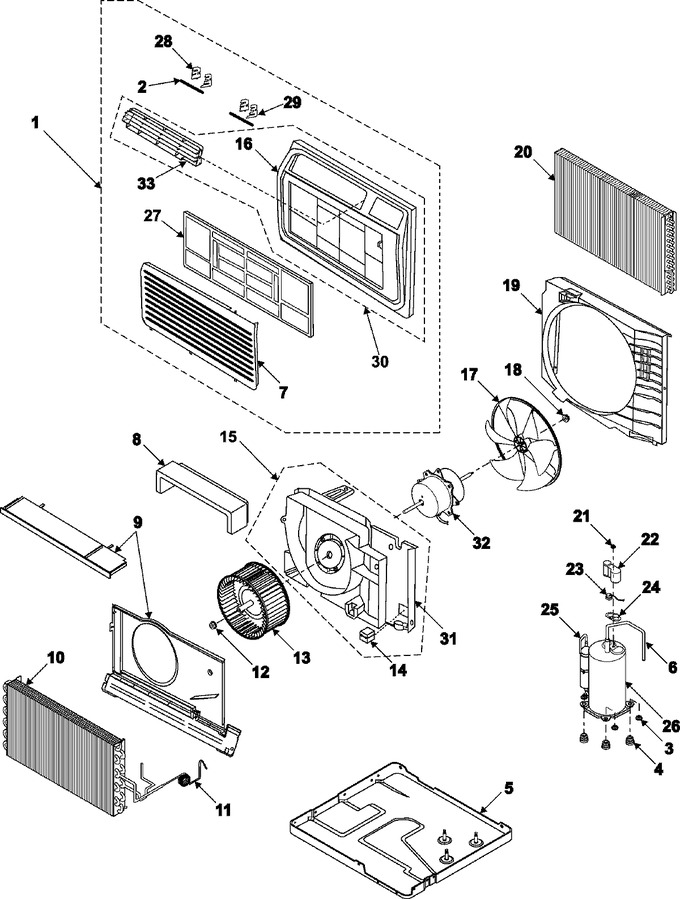

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


04 - Supplemental Information


05 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Assy-panel-front Currently Unavailable		Appelez-nous	-
2	Y00000000		See Note Link Blade Currently Unavialable		Appelez-nous	-
3	DB60-30028A		Nut-washer		Appelez-nous	-
4	Y00000000		See Note Grommet-isolator Currently Unavailable		Appelez-nous	-
5	DB90-00514A		Assy Base		Appelez-nous	-
6	DB62-00327A		Tube Discharge		Appelez-nous	-
7	DB64-10145A		Grille-air Inlet		Appelez-nous	-
8	Y00000000		See Note Assy-evap Case Up Currently Unavailable		Appelez-nous	-
9	Y00000000		See Note Assy-plate Evap Casing Currently Unavailable		Appelez-nous	-
10	DB96-00983A		Assy Evap		Appelez-nous	-
11	DB62-00687B		Tube Capillary		Appelez-nous	-
12	DB60-30004A		Nut-flange		Appelez-nous	-
13	DB67-50078A		Blower		Appelez-nous	-
14	Y00000000		See Note Insulation Tube Currently Unavailable		Appelez-nous	-
15	Y00000000		See Note Assy Partition Currently Unavailable		Appelez-nous	-
16	DB64-70080A		Panel-front		Appelez-nous	-
17	DB67-00139A		Fan, Propeller				$ 121.92
18	DB60-00437A		Nut-flange   (Replaces: DB60-30020A)			Immediately	$ 5.57
19	DB61-00647A		Case Cond		Appelez-nous	-
20	DB96-00979A		Assy Cond Aw12fjaa,7-5x17x510.		Appelez-nous	-
21	DB60-30004A		Nut-flange		Appelez-nous	-
22	DB63-10026A		Cover-terminal		Appelez-nous	-
23	DB35-00011D		Protector O/l;-,mra12132-12007		Appelez-nous	-
24	DB63-20003A		Gasket		Appelez-nous	-
25	DB62-00684A		Tube Suction		Appelez-nous	-
26	44B098HX1EF		Rotary Compressor: 115v,1ph,60		Appelez-nous	-
27	DB63-30142A		Guard-air Filter		Appelez-nous	-
29	DB66-30169A		Blade-h		Appelez-nous	-
30	DB92-00551K		Assy Panel		Appelez-nous	-
31	DB71-00075B		Plate-partition		Appelez-nous	-
32	DB31-00122F		Motor Fan		Appelez-nous	-
33	Y00000000		See Note Frame-blade Currently Unavailable		Appelez-nous	-
