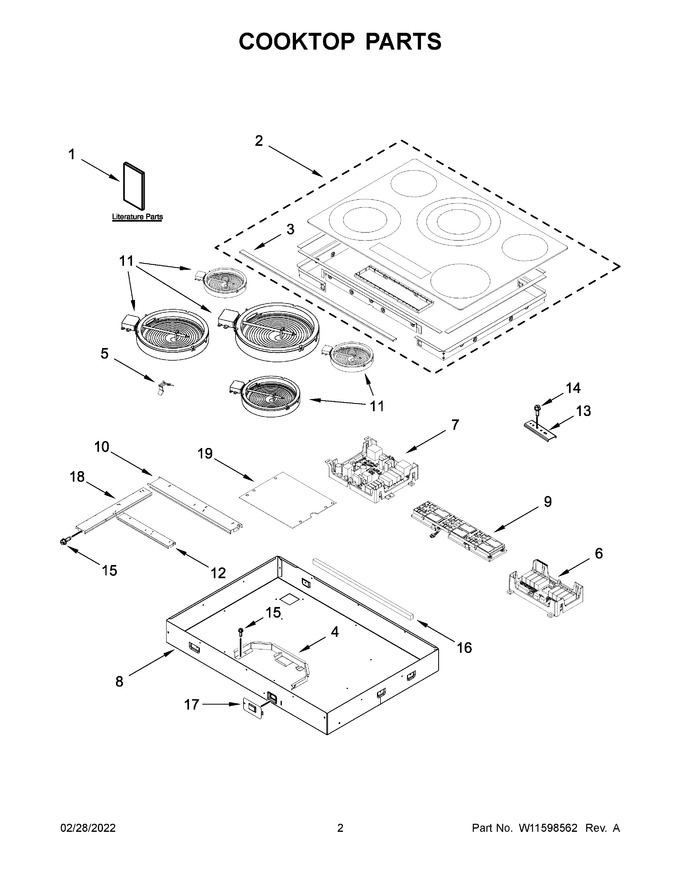

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11439185		Installation Instructions		Appelez-nous	-
2	W11560569		Cooktop Glass Assembly (black)   (Replaces: W11406993)				$ 1,213.25
3	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
4	W11110726		Shield, Heat		Appelez-nous	-
5	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
6	W11259509		Appliance Manager, Expansion   (Replaces: W11115981)			Immediately	$ 501.39
7	W11350303		Appliance Manager, Copernicus   (Replaces: W11296739)				$ 510.43
8	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
9	W11727261		Ui Assembly   (Replaces: W11420428)				$ 379.20
10	W11110717		Rail, Auxiliar		Appelez-nous	-
11	W11259508		Element (3200w) (left Front)   (Replaces: W11117008)			Immediately	$ 338.51
12	W11106010		Rail, Horizontal		Appelez-nous	-
13	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 92.86
14	WP3400093		Screw   (Replaces: 3400093)				$ 7.55
15	7101P42660		Screw		Appelez-nous	-
16	W11260678		Top, Foam (heat Shield)   (Replaces: W11177352)				$ 24.71
17	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
18	W11110716		Rail, Short Cooktop		Appelez-nous	-
19	W11242976		Pad, Insulation		Appelez-nous	-
11A	W11171119		Element (1200w) (left Rear)   (Replaces: 8273994)			Immediately	$ 225.62
11B	W10823720		Element (3000w) (center Rear)   (Replaces: W10187839)			Immediately	$ 386.80
11C	WP8273993		Element (1800w) (right Front)   (Replaces: 8273993)			Immediately	$ 287.73
11D	WPW10342780		Element (1300w) (right Rear)   (Replaces: W10342780)			Immediately	$ 168.46
1A	W11245478		Instructions, Undercounter Installation		Appelez-nous	-
1B	W11439186		Owners Manual		Appelez-nous	-
1C	W11238368		Diagram, Wiring		Appelez-nous	-
2A	W11562759		Cooktop Glass Assembly (stainless)   (Replaces: W11406994)				$ 1,401.10
NI	7103P02760		Nut		Appelez-nous	-
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 7.55
NI	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 12.05
NI	W11261074		Insulation, Cooktop   (Replaces: W11160360)		Appelez-nous	-
NI	W11111812		Harness, Main		Appelez-nous	-
NI	7101P52060		Screw		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 156.46
