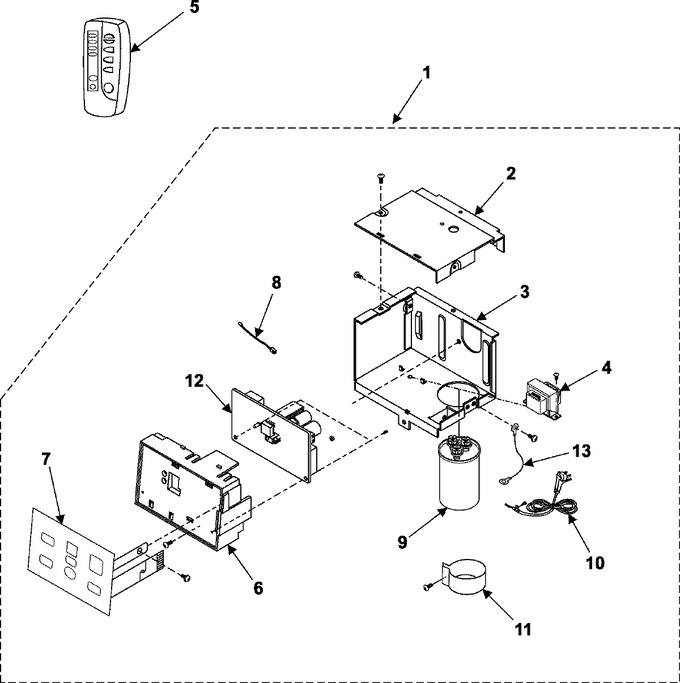

01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
04 - Supplemental Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB61-00676A | Bracket-control |
|
- | |||||
| 1 | DB93-02520J | Assy Control Box |
|
- | |||||
| 2 | DB61-00669D | Case Control-low |
|
- | |||||
| 3 | DB61-00670B | Case Control-up |
|
- | |||||
| 4 | DB32-10051E | Thermistor |
|
$ 48.91 | |||||
| 5 | DB93-03018V | Assy Remocon |
|
$ 52.36 | |||||
| 6 | DB64-00929A | Panel Control-d;h2-p/j,abs,-,w |
|
$ 9.45 | |||||
| 7 | DB34-00054A | Switch Membrane |
|
$ 24.17 | |||||
| 8 | DB26-00006J | Trans L.v-power;-,ac115v,50/60 |
|
$ 77.45 | |||||
| 9 | 2501-001231 | Capacitor (oil) |
|
- | |||||
| 10 | DB93-02938D | Assy Power Cord |
|
- | |||||
| 11 | DB65-00031A | Clip-capacitor |
|
- | |||||
| 12 | DB93-03564A | Assy Pcb Main |
|
$ 128.79 | |||||
| 13 | DB71-50015D | Wire-earth C Oil |
|
- |
