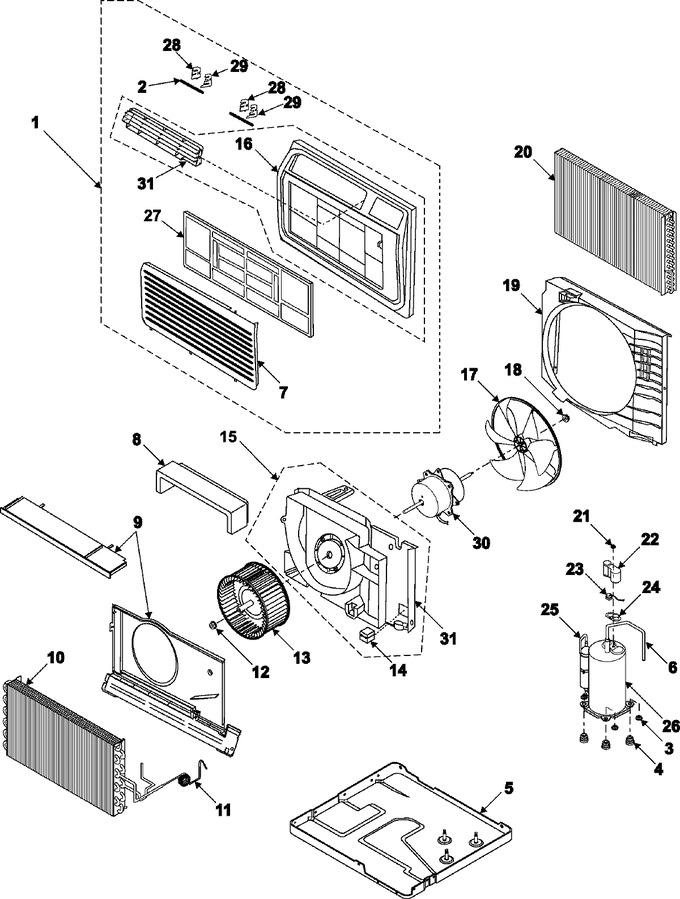

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


04 - Supplemental Information


05 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-00519H		Assy Panel Front		Appelez-nous	-
2	DB66-00552A		Link Blade;h3-pjt,top,pp,l131,		Appelez-nous	-
3	DB60-30028A		Nut-washer		Appelez-nous	-
4	DB63-00763A		Grommet-insolator		Appelez-nous	-
5	DB90-01215C		Assy Base;h3-pjt,-		Appelez-nous	-
6	DB62-02469E		Tube Discharge		Appelez-nous	-
7	DB64-00913A		Grille-air Inlet;h3-p/j,top,se				$ 17.40
8	DB61-02591A		Case Evap-up		Appelez-nous	-
9	DB94-00916A		Assy-plate Evap Casing		Appelez-nous	-
10	DB96-05580A		Assy Evap		Appelez-nous	-
11	DB96-05579B		Assy Tube Capillary		Appelez-nous	-
12	6021-001056		Nut-hexagon Flange		Appelez-nous	-
13	DB67-00096A		Blower				$ 59.18
14	Y00000000		See Note Insulation Tube Currently Unavailable		Appelez-nous	-
15	DB94-00915A		Assy Partition		Appelez-nous	-
16	DB64-00912A		Panel-front;h3-p/j,top,sea,hip		Appelez-nous	-
17	DB67-00047B		Fan-propeller				$ 56.16
18	DB60-00437A		Nut-flange   (Replaces: DB60-30020A)			Immediately	$ 5.57
19	DB61-01580B		Case Cond		Appelez-nous	-
20	DB96-02954E		Assy Cond		Appelez-nous	-
21	DB60-30004A		Nut-flange		Appelez-nous	-
22	DB63-00762A		Cover Terminal;r/comp,ge Noryl		Appelez-nous	-
23	DB47-20001U		Olp				$ 35.64
24	DB63-00765A		Gasket;r/comp,epdm,0.8,-,-,-,6		Appelez-nous	-
25	DB62-02470C		Tube Suction		Appelez-nous	-
26	44B135HXAEL		F/rotary Comressor		Appelez-nous	-
27	DB63-00807C		Guard-air Filter		Appelez-nous	-
28	DB66-00550A		Blade		Appelez-nous	-
29	DB66-00551A		Blade-v,b;h3-pjt,top,sea,hips,		Appelez-nous	-
30	DB31-00236A		Motor Fan;ygn59-6b,14k-a,fyk-1				$ 194.18
31	DB61-01524A		Frame-blade;h3-p/j,top,sea,hip		Appelez-nous	-
