Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DB93-02510C Assy Control-d;co,-,18k,aw1805 Appelez-nous -
2 DB61-01527A Case Control;h3-p/j,top,sgcc-m Appelez-nous -
3 DB32-10051E Thermistor Special Order $ 48.91

4 DB93-02478C Assy Pcb Main Appelez-nous -
5 DB34-00033A Switch Membrane;-,-,-,pe,-,-,4 Special Order $ 25.77

6 DB64-00911A Panel Control-e;h3-p/j,top,sea Special Order $ 9.13

7 DB26-00006K Trans L.v-power;-,ac230v,50/60 Special Order $ 89.92

8 DB61-01525A Bracket-control;h3-p/j,top,sea Appelez-nous -
9 DB39-00344B Power Cord-ass`y Appelez-nous -
10 2301-001449 C-film,mpe-ppf Appelez-nous -
11 2501-001237 Capacitor (oil) Appelez-nous -
12 DB93-03018X Assy-remocon Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

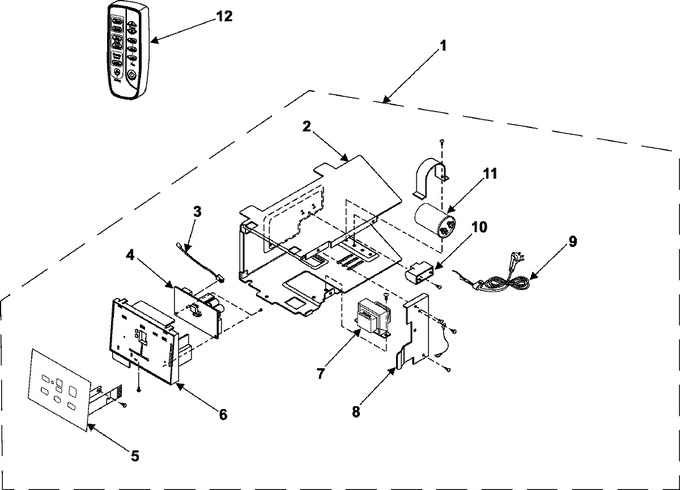

Diagram for AW1805B
