01 - Chassis Assembly

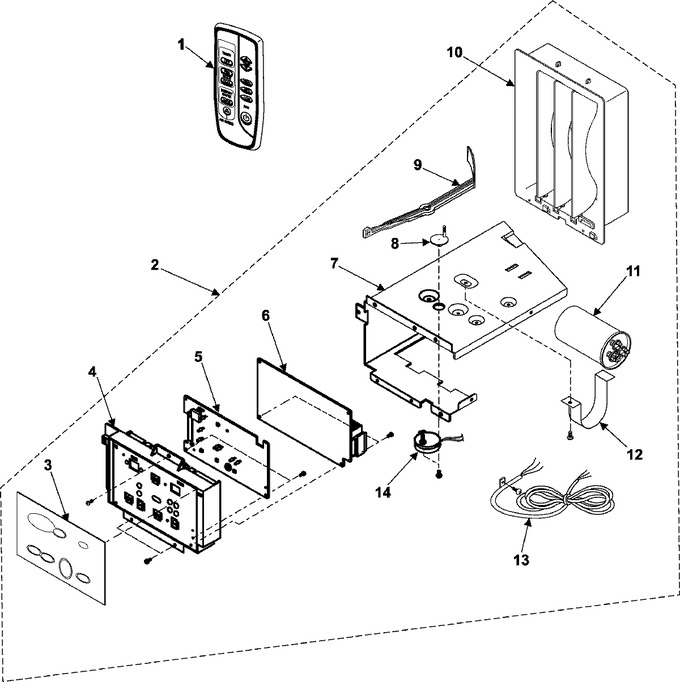

02 - Control Assembly
03 - Outer Case Assembly
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB93-00284B | Assy Remocon |
|
- | |||||
| 2 | DB39-20358C | Connect Wire-display |
|
- | |||||
| 2 | DB32-10051A | Thermistor |
|
- | |||||
| 2 | DB32-10031A | Thermistor-stopper |
|
- | |||||
| 2 | DB93-00265G | Assy-control |
|
- | |||||
| 3 | Y00000000 | See Note Inlay Control Currently Unavailable |
|
- | |||||
| 4 | DB64-00107A | Panel-control-e |
|
- | |||||
| 5 | PD-SM12D-P1 | Assy Pcb Parts:asm12d,120v60hz |
|
- | |||||
| 6 | PD-SM12A-00 | Assy Pcb Parts:asm12a(option), |
|
- | |||||
| 7 | DB61-00188A | Case-control |
|
- | |||||
| 8 | DB66-70029A | Arm-blade |
|
- | |||||
| 9 | DB66-70024A | Lever-damper |
|
$ 50.00 | |||||
| 10 | DB66-30203C | Blade-v |
|
- | |||||
| 10 | DB90-50161B | Assy-frame-,blade |
|
- | |||||
| 11 | 2501-001208 | C-oil |
|
- | |||||
| 12 | Y00000000 | See Note Clip-capacitor Currently Unavailable |
|
- | |||||
| 13 | DB39-00169C | Ssy Power Cord |
|
- | |||||
| 14 | Y00000000 | See Note Assy Motor-swing Currently Unavailable |
|
- |
