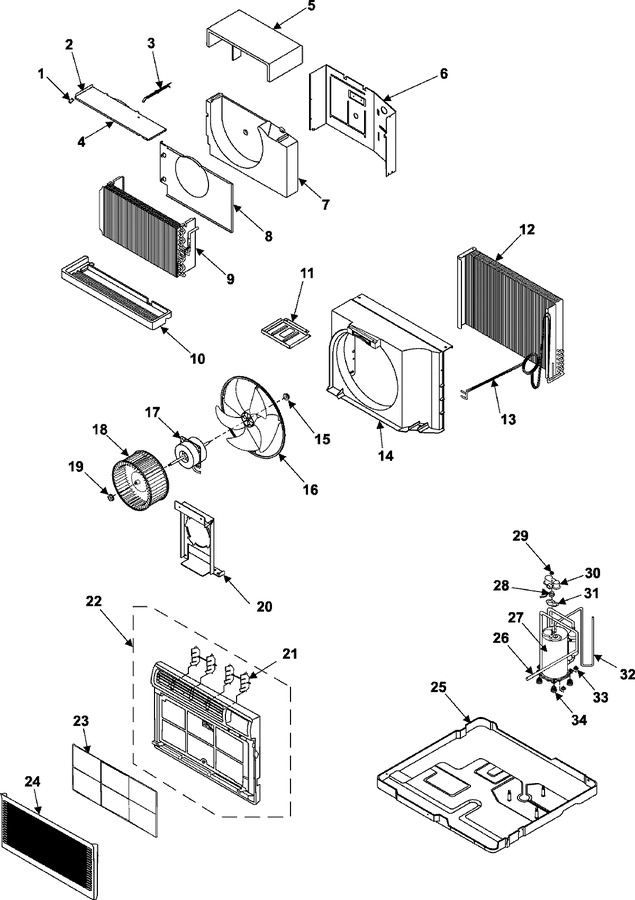

01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
04 - Supplemental Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB61-00443A | Bracket-panel |
|
- | |||||
| 2 | Y00000000 | See Note Bracket-e/cover Currently Unavailable |
|
- | |||||
| 3 | DB66-00400A | Lever Damper |
|
- | |||||
| 4 | DB94-00088A | Assy-evap Cover |
|
- | |||||
| 5 | DB94-00097A | Assy-case Blower,up |
|
- | |||||
| 5 | DB61-00439A | Case-blower,up |
|
- | |||||
| 6 | DB71-00027A | Plate-partition |
|
- | |||||
| 7 | DB61-00445A | Case-blower,low |
|
- | |||||
| 8 | DB61-00438A | Case-blower,front |
|
- | |||||
| 9 | DB96-01046A | Assy Evap |
|
- | |||||
| 10 | DB63-00185A | Tray Drain |
|
- | |||||
| 11 | DB71-00028A | Plate-reinf. |
|
- | |||||
| 12 | DB96-01048A | Assy Cond |
|
- | |||||
| 12 | DB96-00115A | Assy-tube Cond In |
|
- | |||||
| 13 | DB96-02474A | Assy Tube Capillary |
|
- | |||||
| 14 | DB61-00448A | Case Cond |
|
- | |||||
| 15 | Y00000000 | See Note Nut-flange Currently Unavailable |
|
- | |||||
| 16 | DB67-00047B | Fan-propeller |
|
$ 56.16 | |||||
| 17 | DB31-00106A | Motor Fan |
|
- | |||||
| 17 | DB39-00264C | Connect Wire-motor |
|
- | |||||
| 18 | DB67-00096A | Blower |
|
$ 59.18 | |||||
| 19 | 6021-001056 | Nut-hexagon Flange |
|
- | |||||
| 20 | DB61-00440A | Mount Motor |
|
- | |||||
| 21 | DB66-00398A | Link Blade |
|
- | |||||
| 22 | DB92-00396A | Assy Panel Front |
|
- | |||||
| 23 | DB61-00191A | Guide-filter |
|
- | |||||
| 23 | DB63-00627A | Guard-filter |
|
- | |||||
| 24 | Y00000000 | See Note Grille Air Inlet Currently Unavailable |
|
- | |||||
| 25 | DB90-00304B | Assy Base |
|
- | |||||
| 26 | DB62-00456C | Tube Suction |
|
- | |||||
| 27 | 48D172IU1EQ | R/comp:17200btu,60hz,1ph,r22 |
|
- | |||||
| 28 | DB35-00011K | Relay Protector O/l;-,mra12133 |
|
- | |||||
| 29 | DB60-30001A | Nut-terminal Cover |
|
- | |||||
| 30 | DB63-10026A | Cover-terminal |
|
- | |||||
| 31 | DB63-20003A | Gasket |
|
- | |||||
| 32 | DB62-00457B | Tube Discharge |
|
- | |||||
| 33 | DB60-30028A | Nut-washer |
|
- | |||||
| 34 | DB73-00067A | Grommet Isolator |
|
- |
