Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10167821 Console Asm. (includes Insert) (black) Appelez-nous -
1 W10167822 Console Asm. (includes Insert) (white) Appelez-nous -
2 8546546 Clip, Bi-metal Special Order $ 7.82

3 W10258275 Bi-metal   (Replaces: 661663) In-Stock Immediately $ 41.71

4 WPW10348409 Screw   (Replaces: 3369051) In-Stock Immediately $ 8.20

5 8193882 Bolt, Latch   (Replaces: 8524476) In-Stock Immediately $ 114.47

6 W11684608 Handle, Latch (black)   (Replaces: W10127604) Special Order $ 8.59

6 W10127605 Handle, Latch (white) Special Order $ 9.50

7 WP8524471 Actuator, Latch   (Replaces: 8524471) In-Stock Immediately $ 101.28

8 WPW10285180 Control, Electronic   (Replaces: W10130967) In-Stock Immediately $ 316.89

9 WPW10134019 Switch, Door   (Replaces: W10134019) Special Order $ 82.73

10 WP3400412 Screw   (Replaces: 3400412) In-Stock Immediately $ 7.94


    View Diagram in Separate Window     Print Icon   Print Part List

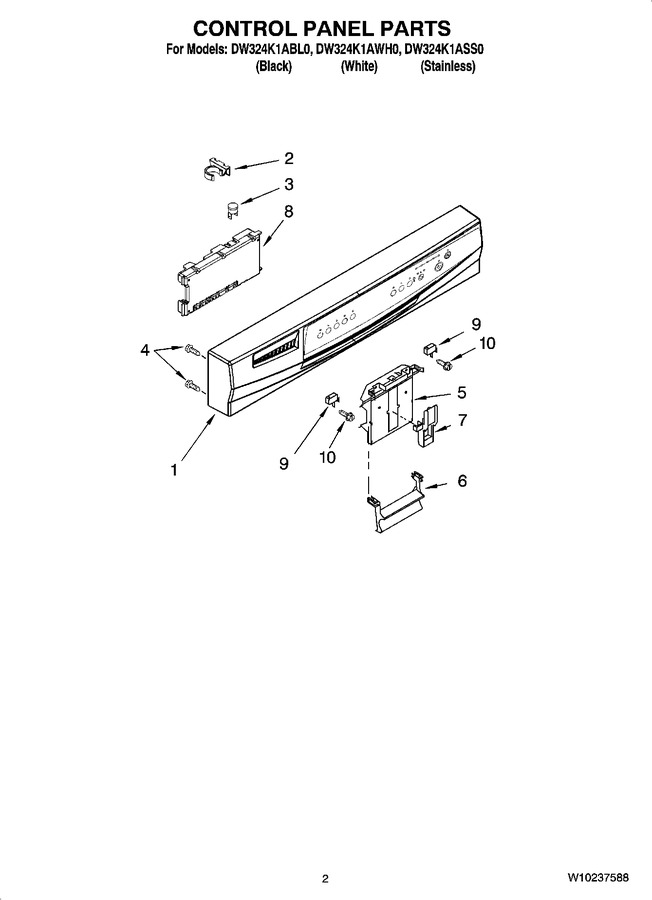

Diagram for DW324K1ASS0
