SELECT A DIAGRAM

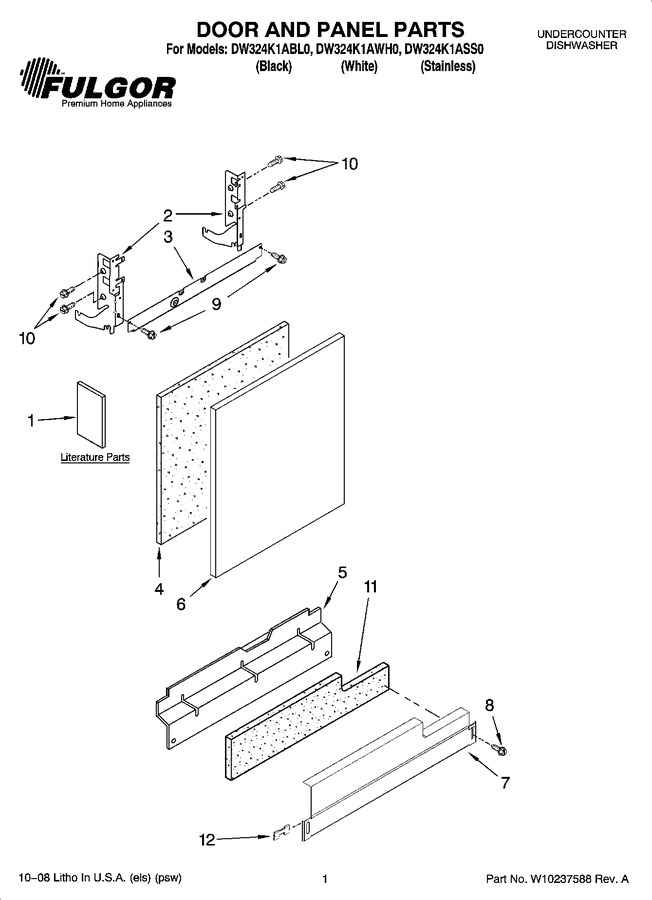

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm And Strainer Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167757		Guide, Use & Care English/french		Appelez-nous	-
1	W10142800		Tech Sheet		Appelez-nous	-
1	W10167758		Instructions, Installation		Appelez-nous	-
1	W10167761		Energy Guide		Appelez-nous	-
1	W10167794		Guide, Use & Care Spanish		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8564886		Stiffener, Door		Appelez-nous	-
4	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 42.25
6	W10167824		Panel, Front (includes Item 4) (stainless)		Appelez-nous	-
6	8269842		Panel, Front (includes Item 4) (white)		Appelez-nous	-
6	W10301571		Panel, Front (includes Item 4) (black)   (Replaces: 8269841)				$ 398.59
7	W10871196		Toe Panel (include Items 11 & 12) (black White)   (Replaces: W10205336)				$ 174.04
8	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
8	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	W10831329		Insulation Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
12	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21

    View Diagram in Separate Window       Print Part List
