SELECT A DIAGRAM

Diagram for 01 - Door And Panel Parts
01 - Door And Panel Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Latch Parts
03 - Door And Latch Parts

Diagram for 04 - Fill, Drain And Overfill Parts
04 - Fill, Drain And Overfill Parts

Diagram for 05 - Tub And Frame Parts
05 - Tub And Frame Parts

Diagram for 06 - Pump And Motor Parts
06 - Pump And Motor Parts

Diagram for 07 - Upper Wash And Rinse Parts
07 - Upper Wash And Rinse Parts

Diagram for 08 - Heater Parts
08 - Heater Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Lower Rack Parts
10 - Lower Rack Parts

Diagram for 11 - Lower Washarm And Strainer Parts, Optional Parts (not Included)
11 - Lower Washarm And Strainer Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10167758 Instructions, Installation Appelez-nous -
1 W10167761 Energy Guide Appelez-nous -
1 W10167794 Guide, Use & Care Spanish Appelez-nous -
1 W10167757 Guide, Use & Care English/french Appelez-nous -
1 W10130990 Tech Sheet Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 8564886 Stiffener, Door Appelez-nous -
4 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

5 W11763736 Access Panel Black   (Replaces: 8573255) In-Stock Immediately $ 42.25

5 WPW10441007 Access Panel (white)   (Replaces: 8573256) Special Order $ 170.94

6 W10167808 Screw, Set Appelez-nous -
7 W10167774 Panel, Front (includes Items 4, 10 & 11) (black) Appelez-nous -
7 W10167776 Panel, Front (includes Items 4, 10 & 11) (stainless) Appelez-nous -
7 W10167775 Panel, Front (includes Items 4, 10 & 11) (white) Appelez-nous -
8 W10799406 Toe Panel (includes Items 15 & 16) (white)   (Replaces: W10205337) Special Order $ 170.13

8 W10871196 Toe Panel (includes Items 15 & 16) (black)   (Replaces: W10205336) Special Order $ 174.04

9 W10167805 Handle (includes Item 6) (stainless) Appelez-nous -
9 W10167804 Handle (includes Item 6) (white) Appelez-nous -
9 W10167803 Handle (includes Item 6) (black) Appelez-nous -
10 WP8564951 Stud, Mounting   (Replaces: 8564951) In-Stock Immediately $ 19.33

11 W10167773 Nameplate, Fulgor Appelez-nous -
12 WP302868 Screw Black   (Replaces: 302868) In-Stock Immediately $ 8.18

12 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 8.10

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

15 W10831329 Insulation Toe Panel   (Replaces: W10073540) In-Stock Immediately $ 43.30

16 WP8269016 Clip, Ground   (Replaces: 8269016) Special Order $ 11.21

17 W10167771 Bezel (black) Appelez-nous -
17 W10167772 Bezel (white) Appelez-nous -
18 W10133538 Plate, Backing Appelez-nous -
19 W10123421 Screw Special Order $ 12.83


    View Diagram in Separate Window     Print Icon   Print Part List

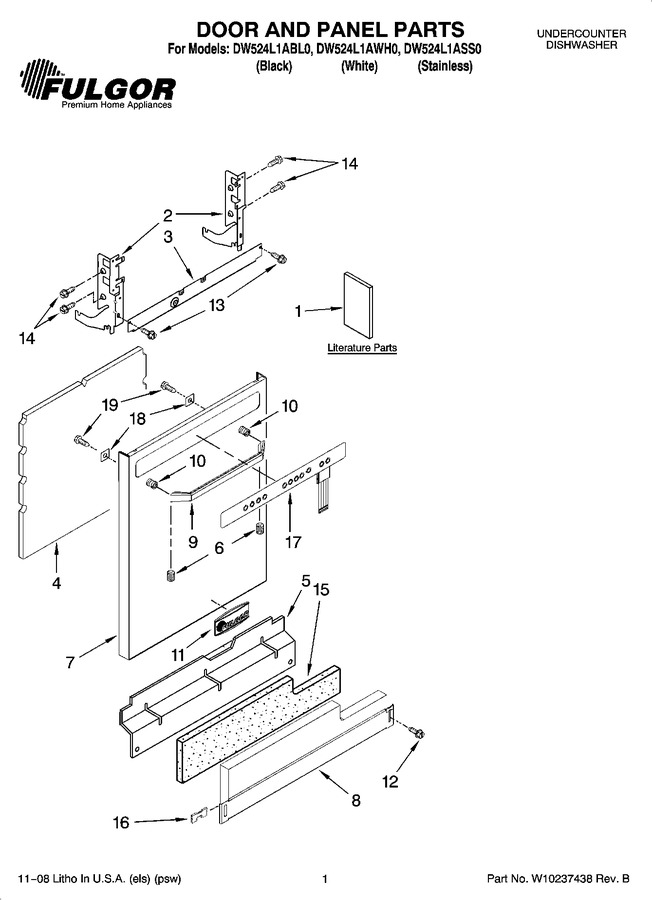

Diagram for DW524L1ABL0
