Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left)) Special Order $ 92.84

2 WP3196068 Lens, Indicator   (Replaces: 3196068) In-Stock Immediately $ 6.26

3 WPW10318551 Console (black)   (Replaces: W10318551) Special Order $ 272.41

4 7101P50060 Screw Appelez-nous -
5 W11594156 Control, Maxwell Electronic   (Replaces: W11515091) Special Order $ 382.59

6 7407P13660 Light, Indicator Appelez-nous -
7 W11517335 Knob (chrome)   (Replaces: W10850040) In-Stock Immediately $ 21.54

8 W10278697 Shield, Vent In-Stock Immediately $ 183.33

9 WPW10299338 Shield, Wire Cover   (Replaces: W10299338) Special Order $ 96.60

10 W11129442 Switch, Infinite (left Front)   (Replaces: W10437097) In-Stock Immediately $ 109.75

11 W11594167 Assembly, Membrane (including Bracket) (black)   (Replaces: W11527483) Appelez-nous -
12 W10674068 Screw Special Order $ 24.39

13 W10776098 Cover, Backguard Special Order $ 135.81

14 W10850042 Bezel (stainless) In-Stock Immediately $ 65.25

15 7101P43460 Screw Appelez-nous -
16 7101P63360 Screw (black) Appelez-nous -
10A W10917724 Switch, Infinite (left Rear)   (Replaces: W10437094) In-Stock Immediately $ 129.35

10B WPW10312185 Switch, Infinite (right Front)   (Replaces: W10312185) In-Stock Immediately $ 154.38

10C WP7403P238-60 Switch, Infinite (right Rear)   (Replaces: 7403P37360) In-Stock Immediately $ 74.78

11A W11594168 Assembly, Membrane (including Bracket) (white)   (Replaces: W11527481) Appelez-nous -
11B W11594155 Assembly, Membrane (including Bracket) (stainless)   (Replaces: W11527484) Special Order $ 314.40

1A W10319111 Support, Backguard (black (right)) Special Order $ 43.80

1B W10319110 Support, Backguard (white (left)) Special Order $ 95.95

1C W10319112 Support, Backguard (white (right)) Special Order $ 93.79

3A WPW10318552 Console (white)   (Replaces: W10318552) In-Stock Immediately $ 282.47

3B WPW10318550 Console (stainless)   (Replaces: W10318550) Special Order $ 273.23

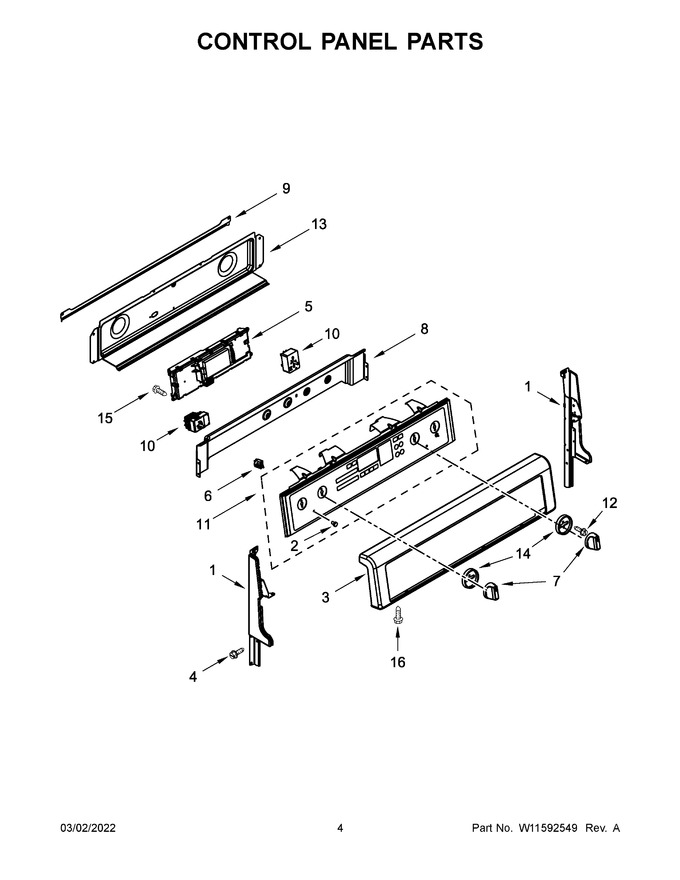

    View Diagram in Separate Window     Print Icon   Print Part List
