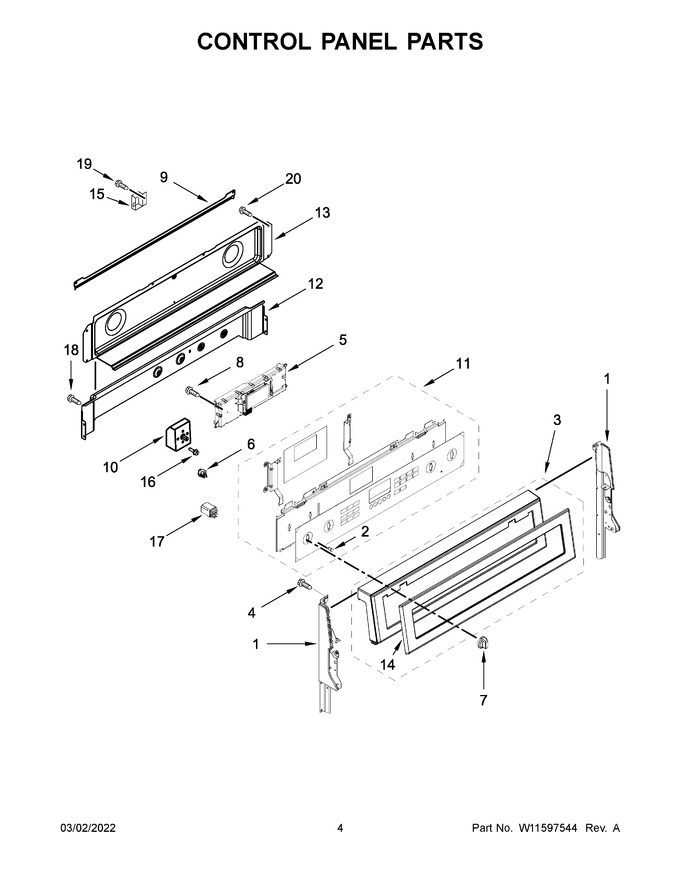

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319109 | Support, Backguard (black (left)) |
|
$ 83.56 | |||||
| 2 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.91 | ||||
| 3 | W11838051 | Assembly, Console (stainless) (Replaces: W11024861) |
|
$ 535.03 | |||||
| 4 | WPW10241367 | Screw (Replaces: W10241367) |
|
$ 6.27 | |||||
| 5 | W11594153 | Control, Maxwell Electric (Replaces: W11515094) |
|
Immediately | $ 441.67 | ||||
| 6 | 7407P13660 | Light, Indicator |
|
- | |||||
| 7 | W11132201 | Knob (stainless) (Replaces: W10886657) |
|
Immediately | $ 87.71 | ||||
| 8 | 7101P43460 | Screw |
|
- | |||||
| 9 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 86.94 | |||||
| 10 | WPW10312185 | Switch, Infinite (right Front) (Replaces: W10312185) |
|
Immediately | $ 145.89 | ||||
| 11 | W11527471 | Assembly, Membrane (includes Bracket) (stainless) |
|
Immediately | $ 335.39 | ||||
| 12 | W10278697 | Shield, Vent |
|
Immediately | $ 165.00 | ||||
| 13 | W10776098 | Cover, Backguard |
|
$ 122.23 | |||||
| 14 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 15 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 16 | 7101P30960 | Screw |
|
- | |||||
| 17 | W10326400 | Relay (12v) |
|
$ 70.90 | |||||
| 18 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 19 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.80 | ||||
| 20 | 7101P42660 | Screw |
|
- | |||||
| 10A | W11661906 | Switch, Infinite (left Rear) (Replaces: W10843843) |
|
Immediately | $ 22.46 | ||||
| 10B | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 10C | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 108.94 | ||||
| 1A | W10319111 | Support, Backguard (black (right)) |
|
$ 43.80 |
