New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11426601 Owner's Manual Appelez-nous -
2 WPW10299236 Kit, Burner Cap (black)   (Replaces: W10299236) In-Stock Immediately $ 225.49

3 W10878907 Cooktop (includes Hinges) (black)   (Replaces: W10785917) Special Order $ 398.44

4 WPW10406878 Head, Burner (17.5k) (left Front)   (Replaces: W10406878) Special Order $ 107.48

5 W11188749 Knob, Control (stainless)   (Replaces: W10850036) In-Stock Immediately $ 82.08

6 W10518258 Bracket, Cooktop Support Appelez-nous -
7 8016P02260 Glide, Main Top Appelez-nous -
8 W11449099 Set, Grate (black)   (Replaces: W11241665) In-Stock Immediately $ 399.76

9 W10828392 Panel, Manifold (black) Appelez-nous -
10 WPW10333445 Base, Burner (fish Burner Only)   (Replaces: W10333445) Special Order $ 110.05

11 WPW10171140 Kit, Burner Cap (fish Burner Only) (black)   (Replaces: W10171140) Special Order $ 168.47

12 W10719582 Endcap, Manifold (black (left)) Appelez-nous -
13 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 7.55

14 W11188712 Bezel   (Replaces: W10850043) In-Stock Immediately $ 61.48

15 7101P63360 Screw (black) Appelez-nous -
16 NP Cabinet (not A Servicable Part) Appelez-nous -
17 W10919249 Grate, Bumper   (Replaces: W10465081) In-Stock Immediately $ 13.18

18 WP3368921 Screw   (Replaces: 3368921) In-Stock Immediately $ 8.56

12A W10719581 Endcap, Manifold (black (right)) Appelez-nous -
12B W10719580 Endcap, Manifold (white (left)) Appelez-nous -
12C W10719579 Endcap, Manifold (white (right)) Appelez-nous -
12D W10823301 Endcap, Manifold (stainless (left)) Appelez-nous -
12E W10823299 Endcap, Manifold (stainless (right)) Appelez-nous -
15A 7101P63660 Screw (white) Appelez-nous -
15B 7101P63460 Screw (stainless Model) Appelez-nous -
1A W11430268 Quick Start Guide Appelez-nous -
1B W11325877 Tech Sheet Appelez-nous -
3A W10878908 Cooktop (includes Hinges) (white)   (Replaces: W10785916) Appelez-nous -
4A WPW10406243 Head, Burner (6k) (left Rear & Right Rear)   (Replaces: W10406243) In-Stock Immediately $ 39.08

4B WPW10406797 Head, Burner (12.5k) (right Front)   (Replaces: W10406797) Special Order $ 92.91

4C WPW10336094 Head, Burner (center)   (Replaces: W10336094) Special Order $ 227.81

9A W10828396 Panel, Manifold (white) Appelez-nous -
9B W10823297 Panel, Manifold (stainless) Appelez-nous -
NI W11172531 Harness, Sensor & Locks Special Order $ 119.20

NI W11172428 Harness, Eol (dofsr) Appelez-nous -
NI NP Cabinet (not A Servicable Part) Appelez-nous -
NI 8019P02660 Clip, Wire-wrap Nylon Appelez-nous -
NI 7111P01760 Clamp, Wire Appelez-nous -
NI W10408058 Harness, Spark Special Order $ 77.20

NI 7109P03660 Washer Appelez-nous -
NI W10745674 Harness, Main Special Order $ 284.66


    View Diagram in Separate Window     Print Icon   Print Part List

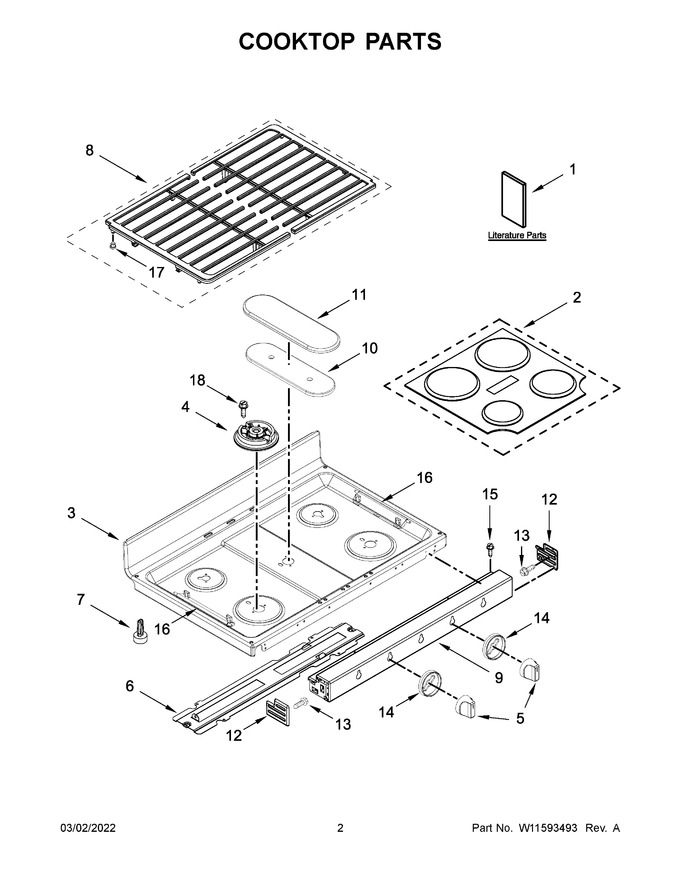

Diagram for WGG745S0FE05
