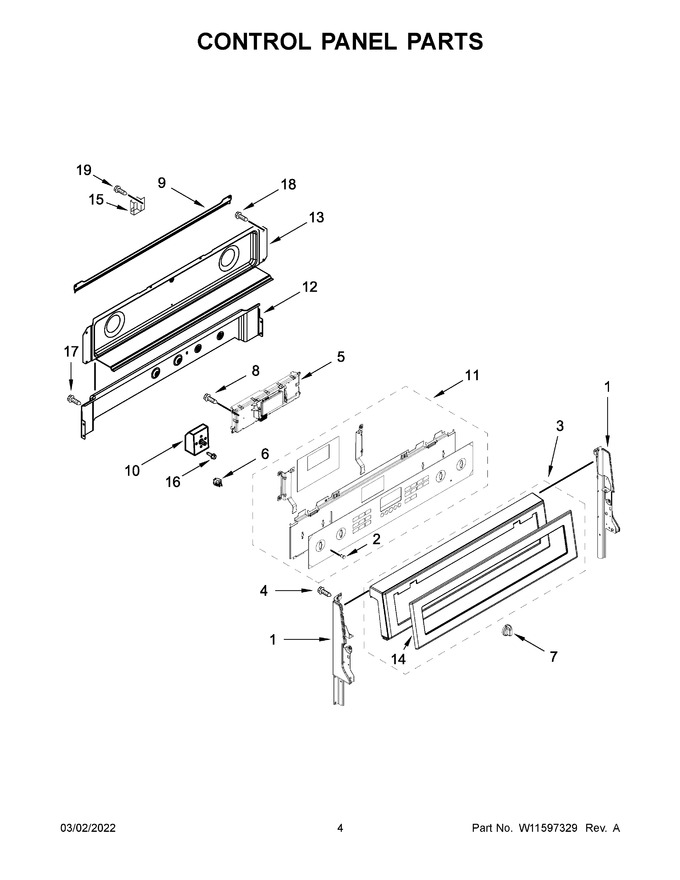

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black (left))				$ 92.84
2	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
3	W11838051		Assembly, Console (stainless)   (Replaces: W11024861)				$ 594.48
4	WPW10241367		Screw   (Replaces: W10241367)				$ 6.27
5	W11594154		Control, Maxwell Electric   (Replaces: W11515092)				$ 382.83
6	7407P13660		Light, Indicator		Appelez-nous	-
7	W11132201		Knob (stainless)   (Replaces: W10886657)			Immediately	$ 92.80
8	7101P43460		Screw		Appelez-nous	-
9	WPW10299338		Shield, Wire Cover   (Replaces: W10299338)				$ 96.60
10	WPW10312185		Switch, Infinite (right Front)   (Replaces: W10312185)			Immediately	$ 154.38
11	W11527471		Assembly, Membrane (includes Bracket) (stainless)			Immediately	$ 372.65
12	W10278697		Shield, Vent			Immediately	$ 183.33
13	W10776098		Cover, Backguard				$ 135.81
14	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
15	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
16	7101P30960		Screw		Appelez-nous	-
17	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
18	7101P42660		Screw		Appelez-nous	-
19	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
10A	W11661906		Switch, Infinite (left Rear)   (Replaces: W10843843)			Immediately	$ 23.76
10B	W10917724		Switch, Infinite (left Rear)   (Replaces: W10437094)			Immediately	$ 129.35
10C	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 115.27
1A	W10319111		Support, Backguard (black (right))				$ 43.80
