Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11508871 Instructions, Installation Appelez-nous -
2 W11620707 Cooktop (white)   (Replaces: W11443178) Appelez-nous -
3 W10620549 Panel, Manifold (white) Appelez-nous -
4 WPW10339443 Knobs (white)   (Replaces: W10339443) Special Order $ 21.54

5 WP98007225 Screw   (Replaces: 98007225) Special Order $ 7.30

6 W10620480 Set, Grate (black) Special Order $ 297.15

7 W11229684 Clip, Cooktop   (Replaces: 98004722) Special Order $ 12.44

8 3184020 Wire, Ground   (Replaces: 6610473) Special Order $ 86.92

9 W10831827 Bumper, Cooktop   (Replaces: 98013389) Appelez-nous -
10 W11233072 Screw   (Replaces: 98005000) In-Stock Immediately $ 14.72

11 W11590055 Cap, Burner (black (left Front & Right Front))   (Replaces: W10638807) Appelez-nous -
12 W10850756 Screw, Ground   (Replaces: 8534079) Special Order $ 8.20

13 W11435630 Spreader, Flame (left Front & Right Front)   (Replaces: W11352018) In-Stock Immediately $ 82.12

14 WPW10613666 Bracket, Anti-tip   (Replaces: W10613666) Special Order $ 17.96

15 7101P48560 Screw, Anti-tip Kit Appelez-nous -
16 W10554125 Griddle Appelez-nous -
17 98005658 Screw (stainless) Appelez-nous -
18 W10919249 Grate, Bumper   (Replaces: W10465081) In-Stock Immediately $ 13.18

19 W11241230 Screw   (Replaces: W10673618) In-Stock Immediately $ 14.73

11A W10638809 Cap, Burner (black (left Rear & Center)) Appelez-nous -
11B W11590057 Cap, Burner (black (right Rear))   (Replaces: W10638810) Appelez-nous -
13A W11435659 Spreader, Flame (left Rear & Center)   (Replaces: W11352020) Special Order $ 84.85

13B W11435657 Spreader, Flame (right Rear)   (Replaces: W11352021) Special Order $ 84.43

1A W11508873 Guide, Use And Care Appelez-nous -
1B W10200950 Sheet, Tech Appelez-nous -
NI WP3391018 Tie, Cable   (Replaces: 3391018) Special Order $ 33.43

NI W11628776 Harness, Main   (Replaces: W10914403) Appelez-nous -
NI 98005896 Clip, Wire Appelez-nous -
NI 98015022 Bushing, Snap Appelez-nous -
NI NP Following Parts Not Illustrated Appelez-nous -

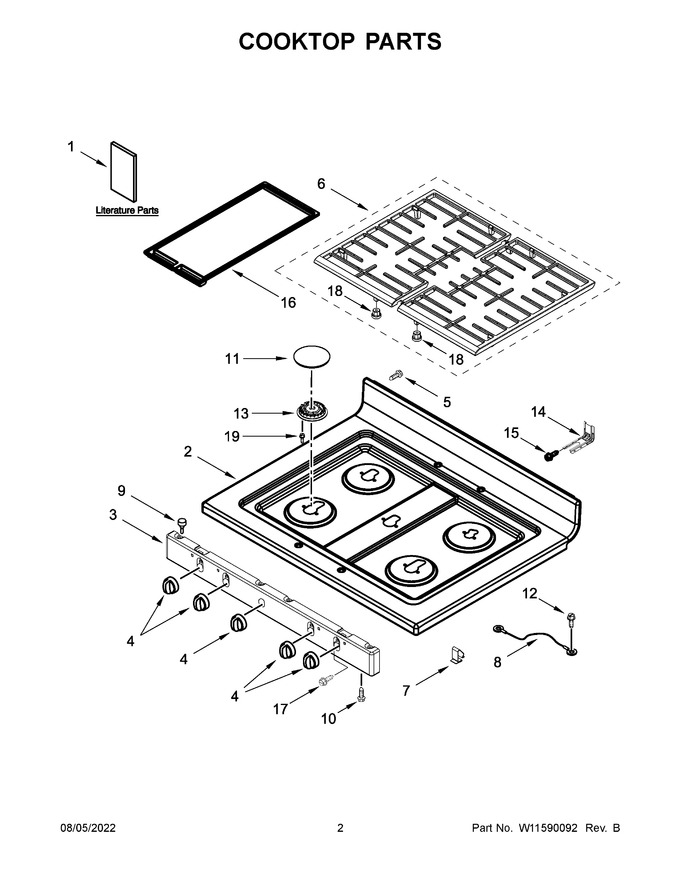

    View Diagram in Separate Window     Print Icon   Print Part List
