SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts

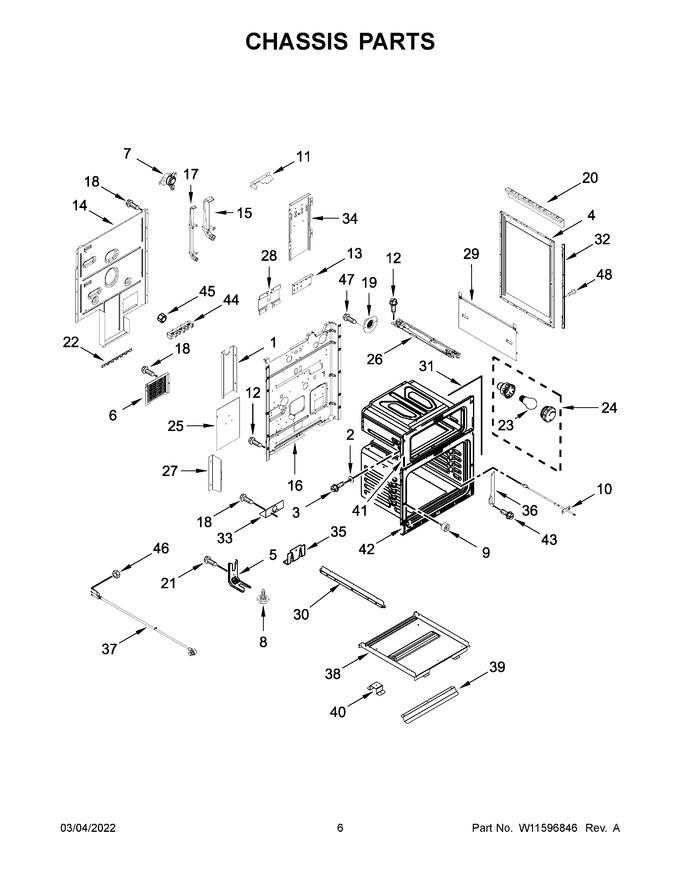

04 - Chassis Parts


05 - Internal Oven Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10332459		Shield, Heat		Appelez-nous	-
2	W11594028		Spacer, Side Panel   (Replaces: W11479123)				$ 13.52
3	7101P64260		Screw		Appelez-nous	-
4	W11594130		Panel, Side (black)   (Replaces: W11477310)				$ 174.90
5	3801F65651		Bracket, Anti-tip		Appelez-nous	-
6	W10312612		Cover, Access (terminal Block)				$ 116.48
7	7403P89960		Switch, High Limit		Appelez-nous	-
8	7101P50760		Foot, Leveler		Appelez-nous	-
9	W10105790		Bumper & Screw				$ 6.67
10	7430P04460		Sensor, Oven		Appelez-nous	-
11	W10268559		Cover, Lower Wire		Appelez-nous	-
12	7101P42660		Screw		Appelez-nous	-
13	W10332449		Shield, Cord				$ 66.06
14	WPW10261386		Cover, Main Wire   (Replaces: W10261386)				$ 175.23
15	W10337391		Tube, Vent (upper)				$ 65.03
16	W10668730		Back, Main			Immediately	$ 205.87
17	WPW10323793		Tube, Vent (lower)   (Replaces: W10323793)				$ 103.37
18	7101P43460		Screw		Appelez-nous	-
19	W10322408		Adapter, Vent Tube				$ 116.13
20	W10319087		Bracket, U Channel				$ 74.79
21	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
22	8036P01260		Shield, Power Cord		Appelez-nous	-
23	40A15		Bulb, Light   (Replaces: 7407P10360)			Immediately	$ 1.98
24	W11594027		Light Assembly   (Replaces: W11544370)			Immediately	$ 78.31
25	W10311987		Shield, Cord (right)		Appelez-nous	-
26	W11166856		Lock, Rear Mount   (Replaces: W10683517)			Immediately	$ 292.00
27	W10268560		Cover, Wire Lower				$ 65.75
28	7003P10460		Insulator, Heat Shield		Appelez-nous	-
29	W10538516		Shield, Side Insulation				$ 128.27
30	W10357697		Bracket, Side Panel				$ 21.91
31	W11594029		Gasket, Oven Door (upper)   (Replaces: W11491754)				$ 95.39
32	W11625729		Bracket, Rubber Barrier   (Replaces: W11453994)				$ 84.65
33	W10190166		Bracket, Power Supply				$ 8.73
34	W10261388		Bracket, Terminal				$ 66.01
35	W10863342		Support, Lower Oven		Appelez-nous	-
36	W10410463		Cover, Hinge (left)				$ 89.04
37	W11226497		Cord, Power   (Replaces: W10624592)			Immediately	$ 99.50
38	W10548601		Pan, Element				$ 139.48
39	W10253470		Bracket, Retaining				$ 73.03
40	W10260545		Clip, Retaining				$ 12.44
41	W11515376		Front, Main (upper)		Appelez-nous	-
42	W11595912		Front, Main (lower)   (Replaces: W11515373)		Appelez-nous	-
43	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
44	WP8203546		Block, Terminal   (Replaces: W10246624)			Immediately	$ 27.12
45	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 7.37
46	7103P02760		Nut		Appelez-nous	-
47	W10850807		Screw   (Replaces: W10720084)				$ 6.99
48	7101P63360		Screw (black)		Appelez-nous	-
31A	W11594140		Gasket, Oven Door (lower)   (Replaces: W11491753)				$ 95.42
36A	W10410461		Cover, Hinge (right)				$ 85.37
NI	W11688548		Insulation, Hidden Bake Pouch   (Replaces: W11463064)		Appelez-nous	-
NI	W11594030		Insulation, Wrapper   (Replaces: W11462751)		Appelez-nous	-
NI	WPW10271637		Insulation, Floor   (Replaces: W10271637)				$ 100.33
NI	W11685361		Insulation, Main Frontstrip   (Replaces: W10204085)				$ 31.99
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	WPW10204079		Insulation, Middle   (Replaces: W10204079)				$ 106.85
NI	WPW10322111		Insulation, Back   (Replaces: W10322111)				$ 125.64

    View Diagram in Separate Window       Print Part List
