Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319110 Support, Backguard (white (left)) Special Order $ 95.95

2 7101P42660 Screw Appelez-nous -
3 W10645847 Console (white) Special Order $ 313.67

4 7101P63460 Screw (stainless Model) Appelez-nous -
5 W10877013 Control, Electronic   (Replaces: W10873168) In-Stock Immediately $ 397.56

6 W11430948 Assembly, User Interface (includes Light Feature) (white)   (Replaces: W10692424) Appelez-nous -
7 W10278697 Shield, Vent In-Stock Immediately $ 183.33

8 W11245710 Screw   (Replaces: 9780274) In-Stock Immediately $ 14.75

9 W10776098 Cover, Backguard Special Order $ 135.81

10 W11684874 Insulation, Wire Cover   (Replaces: W10309232) Special Order $ 35.56

11 NP Cabinet (not A Servicable Part) Appelez-nous -
1A W10319112 Support, Backguard (white (right)) Special Order $ 93.79

1B W10319109 Support, Backguard (black (left)) Special Order $ 92.84

1C W10319111 Support, Backguard (black (right)) Special Order $ 43.80

3A W11164063 Console (stainless)   (Replaces: W10645848) In-Stock Immediately $ 518.62

6A W11430942 Assembly, User Interface (includes Light Feature) (black)   (Replaces: W10619109) Special Order $ 858.61


    View Diagram in Separate Window     Print Icon   Print Part List

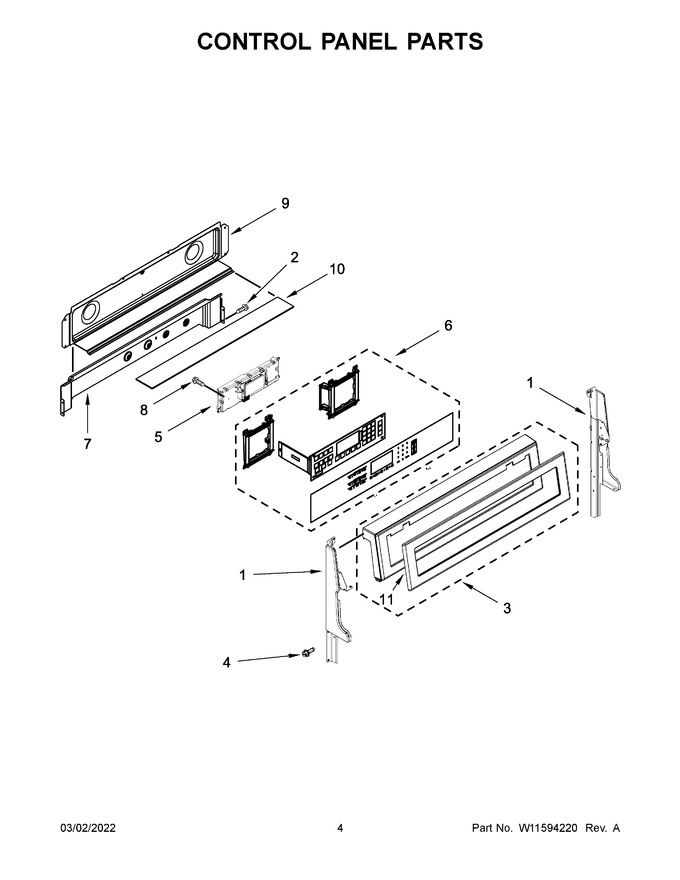

Diagram for KFGD500ESS06
