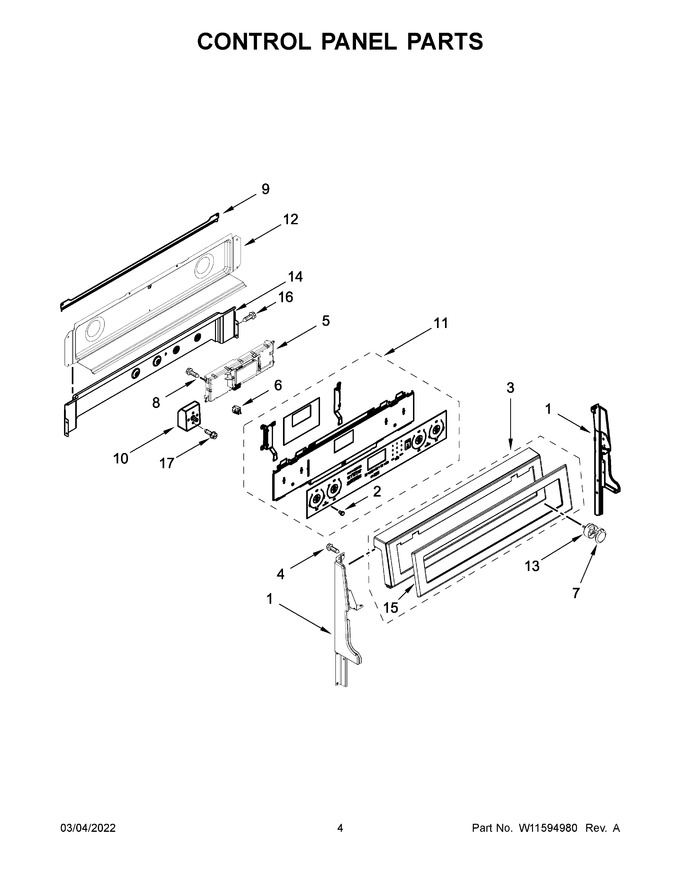

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black (left))				$ 92.84
2	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
3	W11084228		Console (black Stainless)   (Replaces: W11024860)				$ 561.98
4	7101P63360		Screw (black)		Appelez-nous	-
5	W11594139		Control, Maxwell Electronic   (Replaces: W11515093)		Appelez-nous	-
6	7407P13660		Light, Indicator		Appelez-nous	-
7	W11156487		Knob (stainless)   (Replaces: W10823529)			Immediately	$ 61.25
8	7101P43460		Screw		Appelez-nous	-
9	WPW10299338		Shield, Wire Cover   (Replaces: W10299338)				$ 96.60
10	WPW10296657		Switch, Infinite (left Front)   (Replaces: W10296657)			Immediately	$ 301.92
11	W11527486		Assembly, User Interface (includes Light Feature) (black (for Stainless Model Only))			Immediately	$ 372.93
12	W10776098		Cover, Backguard				$ 135.81
13	W11368920		Bezel, Knob   (Replaces: W10645811)			Immediately	$ 60.55
14	W10278697		Shield, Vent			Immediately	$ 183.33
15	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
16	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
17	W10674068		Screw				$ 24.39
10A	WPW10295048		Switch, Infinite (left Rear)   (Replaces: W10295048)			Immediately	$ 159.95
10B	WPW10312185		Switch, Infinite (right Front)   (Replaces: W10312185)			Immediately	$ 154.38
10C	WP7403P238-60		Switch, Infinite (right Rear)   (Replaces: 7403P37360)			Immediately	$ 74.78
1A	W10319111		Support, Backguard (black (right))				$ 43.80
