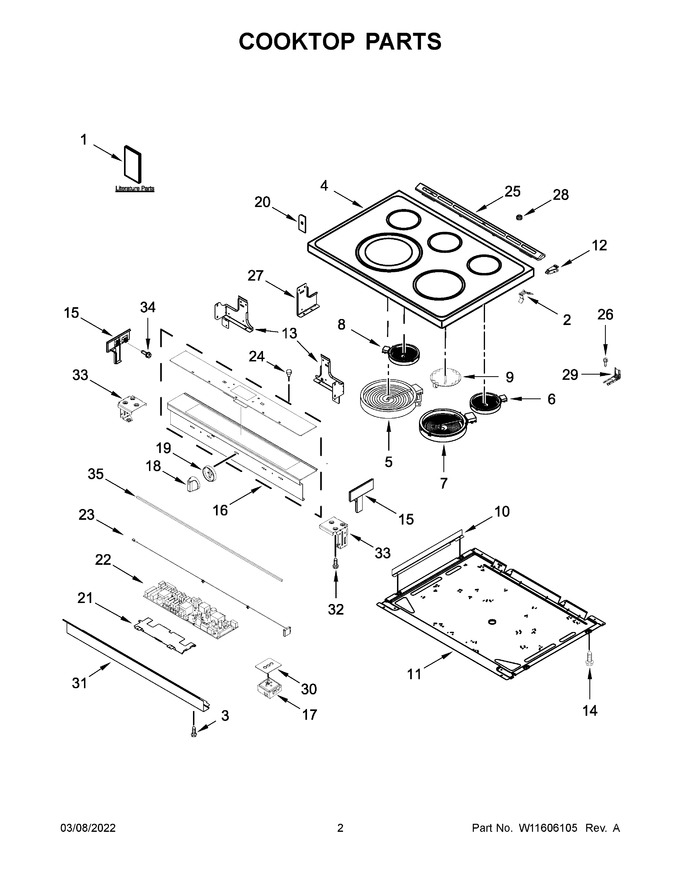

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11335900 | Tech, Sheet |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W11111844 | Cooktop (white) (Replaces: W10865120) |
|
$ 760.64 | |||||
| 5 | W10823720 | Element (3000w) (left Front) (Replaces: W10187839) |
|
Immediately | $ 336.57 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | W11517959 | Element (3000w Dual) (right Front) (Replaces: W11282542) |
|
Immediately | $ 134.44 | ||||
| 8 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 145.32 | ||||
| 9 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 132.95 | |||||
| 10 | W11175271 | Bracket, Radiant |
|
$ 77.91 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 181.61 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10867593 | Support, Cooktop (left) |
|
- | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 15 | W10854355 | Endcap (white (left)) |
|
$ 75.51 | |||||
| 16 | W11339761 | Control Panel Assembly (hmi-central/ui Board) (white) (Replaces: W11293148) |
|
Immediately | $ 898.57 | ||||
| 17 | W11129442 | Switch, Infinite (left Front) (Replaces: W10437097) |
|
Immediately | $ 100.57 | ||||
| 18 | W11112747 | Knob (white (triple)) (Replaces: W10919177) |
|
Immediately | $ 65.26 | ||||
| 19 | W11217245 | Bezel (white) (Replaces: W11156715) |
|
$ 61.46 | |||||
| 20 | W10882900 | Gasket |
|
$ 23.34 | |||||
| 21 | W10908536 | Bracket, Control |
|
$ 79.22 | |||||
| 22 | W11113848 | Control, Electronic (powermax) (Replaces: W10868153) |
|
Immediately | $ 501.60 | ||||
| 23 | W11583804 | Antenna (Replaces: W11516200) |
|
$ 90.55 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 25 | W10636527 | Vent, Trim Top (white) |
|
$ 251.33 | |||||
| 26 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 27 | W10867600 | Bracket, Console (center) |
|
$ 81.75 | |||||
| 28 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 29 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 30 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 31 | W10854346 | Console, Lower Panel (black) |
|
$ 77.08 | |||||
| 32 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 33 | W10828159 | Base, Console (left) |
|
- | |||||
| 34 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 35 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10867592 | Support, Cooktop (right) |
|
- | |||||
| 15A | W10854354 | Endcap (black (left)) |
|
- | |||||
| 15B | W10854359 | Endcap (white (right)) |
|
$ 78.15 | |||||
| 15C | W10854358 | Endcap (black (right)) |
|
- | |||||
| 16A | W11339764 | Control Panel Assembly (hmi-central/ui Board) (black) (Replaces: W11295843) |
|
Immediately | $ 805.24 | ||||
| 17A | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 17B | W10857622 | Switch, Infinite (right Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 17C | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 17D | W10888698 | Switch, Warm Zone (center) |
|
$ 146.93 | |||||
| 18A | W11112751 | Knob (black (triple)) (Replaces: W10919173) |
|
Immediately | $ 82.73 | ||||
| 18B | W11112764 | Knob (white (warming)) (Replaces: W10919178) |
|
$ 82.94 | |||||
| 18C | W11112766 | Knob (black (warming)) (Replaces: W10919174) |
|
$ 82.73 | |||||
| 18D | W11113732 | Knob (white (dual)) (Replaces: W10919179) |
|
Immediately | $ 74.83 | ||||
| 18E | W11113734 | Knob (black (dual)) (Replaces: W10919175) |
|
$ 82.73 | |||||
| 18F | W11113747 | Knob (white (single)) (Replaces: W10919180) |
|
$ 82.94 | |||||
| 18G | W11113785 | Knob (black (single)) (Replaces: W10919176) |
|
$ 82.73 | |||||
| 19A | W11217246 | Bezel (black) (Replaces: W11156712) |
|
$ 61.35 | |||||
| 1A | W11509615 | Use And Care Guide |
|
- | |||||
| 1B | W11460325 | Quick Start Guide |
|
- | |||||
| 25A | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| 33A | W10828160 | Base, Console (right) |
|
- | |||||
| 4A | W11112610 | Cooktop (black) (Replaces: W10865119) |
|
$ 728.89 | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 20.97 | |||||
| NI | W11226786 | Harness, Cooktop (Replaces: W11134658) |
|
Immediately | $ 241.75 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11174740 | Harness, Console |
|
$ 224.96 | |||||
| NI | W11766523 | Harness, Main (Replaces: W11453648) |
|
$ 242.33 |
