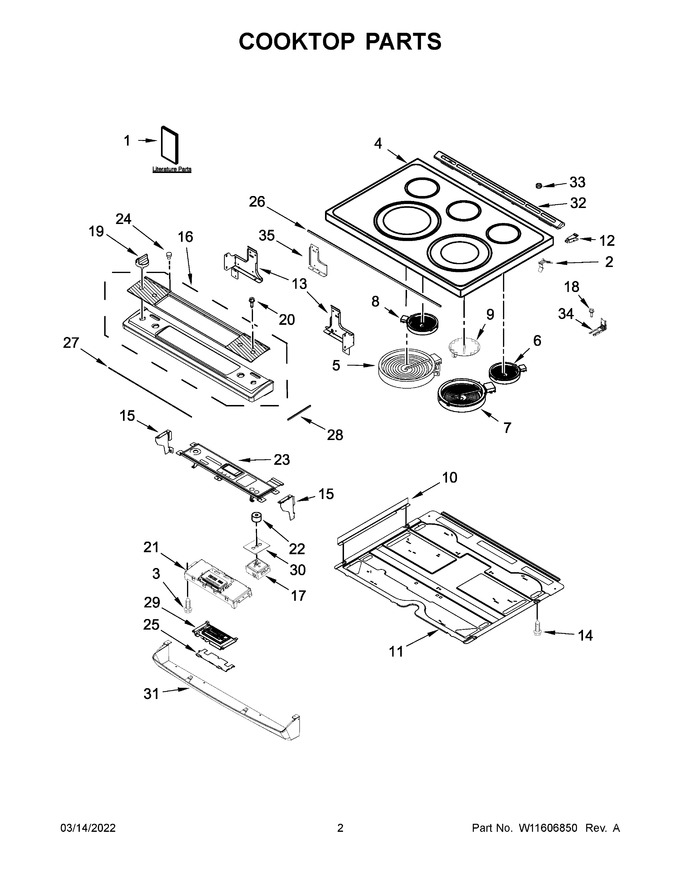

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11435576		Quick Start Guide		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
4	W10751487		Cooktop (black)   (Replaces: W10668781)			Immediately	$ 692.82
5	WPW10275049		Element (2500/1200w) (left Front)   (Replaces: W10275049)			Immediately	$ 314.23
6	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
7	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 223.66
8	WPW10270604		Element (700w) (left Rear)   (Replaces: W10270604)				$ 223.48
9	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
10	W11175271		Bracket, Radiant				$ 77.91
11	W10536275		Pan, Radiant				$ 181.61
12	W10162253		Brace, Corner (left)				$ 74.13
13	W10289170		Support, Cooktop (left)				$ 30.05
14	W11244557		Screw   (Replaces: 3196173)				$ 14.29
15	W10547960		Bracket, Console (left)				$ 23.22
16	W11203729		Assembly, Console (stainless)   (Replaces: W10680368)			Immediately	$ 415.57
17	W10857622		Switch, Infinite (right Front)   (Replaces: W10437092)			Immediately	$ 211.69
18	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
19	W10876614		Knob (stainless)				$ 83.38
20	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
21	W11594262		Cntrl-elec   (Replaces: W11515112)				$ 370.71
22	W10702912		Gasket, Switch Stem				$ 29.82
23	W11040816		Assembly, Overlay (stainless)   (Replaces: W10888919)			Immediately	$ 272.97
24	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
25	W10558372		Bracket, Control				$ 25.10
26	W10802441		Gasket, Console/ Cooktop   (Replaces: W10612719)			Immediately	$ 22.73
27	W10802457		Gasket, Console (17 Inches)   (Replaces: W10689101)				$ 21.33
28	W11744482		Gasket, Console Short (3.75 Inches)   (Replaces: W10689102)				$ 22.92
29	W11122852		Assembly, Display   (Replaces: W10759327)			Immediately	$ 527.64
30	7201P077		Gasket, Infinite Switch		Appelez-nous	-
31	W11218703		Panel, Lower Console (black)   (Replaces: W10570527)			Immediately	$ 162.27
32	W11240519		Vent, Trim Top (black)   (Replaces: W10636528)				$ 157.19
33	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 21.97
34	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 23.03
35	W10598048		Bracket, Console (center)				$ 25.73
12A	W10162252		Brace, Corner (right)				$ 78.59
13A	W10289169		Support, Cooktop (right)				$ 30.05
15A	W10547961		Bracket, Console (right)				$ 23.22
17A	WPW10295048		Switch, Infinite (left Rear)   (Replaces: W10295048)			Immediately	$ 159.95
17B	W10917724		Switch, Infinite (left Rear)   (Replaces: W10437094)			Immediately	$ 129.35
17C	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 104.64
1A	W11326878		Tech Sheet		Appelez-nous	-
1B	W11509603		Owners Manual		Appelez-nous	-
NI	NP		Cabinet (not Serviced)		Appelez-nous	-
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 53.35
NI	W11188430		Harness, Cooktop				$ 241.62
NI	W11207143		Harness, Console				$ 242.72
NI	W11207139		Harness, Bake/warm Drawer				$ 228.08
NI	W11454509		Harness, Main		Appelez-nous	-
NI	W10664316		Clip, Harness (cooktop)				$ 20.97
NI	W11226772		Harness, Display   (Replaces: W11172426)			Immediately	$ 236.93
