01 - Cover Sheet

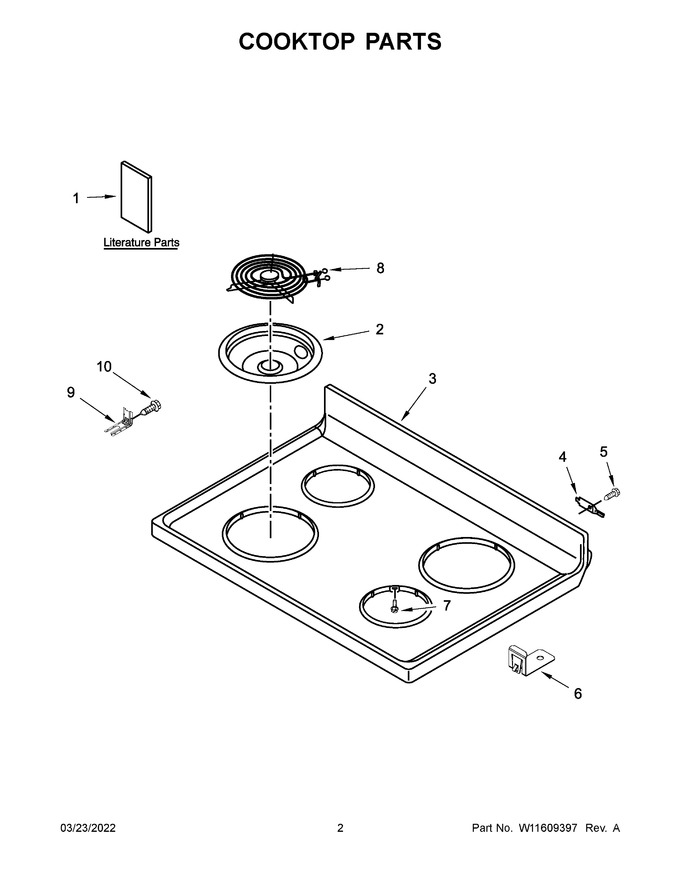

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11034224 | Instructions, Installation (english) |
|
- | |||||
| 2 | WPW10196406 | Bowl, Drip (6") (right Front And Left Rear) (Replaces: W10196406) |
|
Immediately | $ 13.39 | ||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 419.31 | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | W10626011 | Clip, Cooktop |
|
- | |||||
| 7 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 8 | W11168414 | Element, Surface (6") (right Front And Left Rear) (Replaces: W10259870) |
|
Immediately | $ 154.49 | ||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 1A | W11035119 | Instructions, Installation (arabic) |
|
- | |||||
| 1B | W10916032 | Use And Care Guide (english) |
|
- | |||||
| 1C | W10916033 | Use And Care Guide (arabic) |
|
- | |||||
| 1D | W10394783 | Tech Sheet (english) |
|
- | |||||
| 1E | W10464421 | Tech Sheet (arabic) |
|
- | |||||
| 2A | WPW10196405 | Bowl, Drip (8") (left Front And Right Rear) (Replaces: W10196405) |
|
Immediately | $ 17.29 | ||||
| 8A | W11161939 | Element, Surface (8") (left Front And Right Rear) (Replaces: W10259867) |
|
Immediately | $ 168.63 | ||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W11396691 | Harness, Cooktop (Replaces: W10279107) |
|
$ 189.76 | |||||
| NI | W11452638 | Harness, Main |
|
- |
