View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

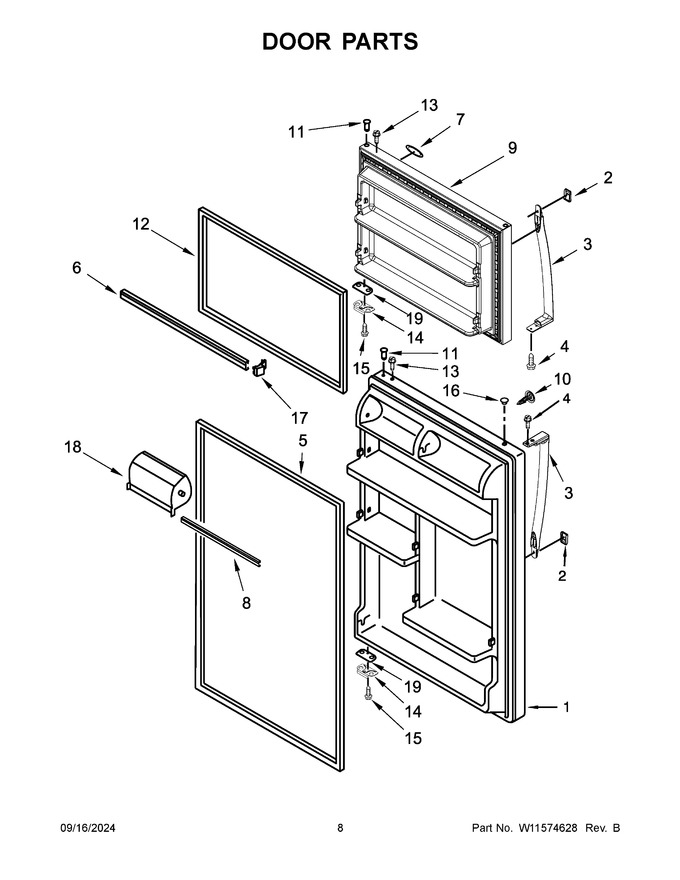

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10573334 | Refrigerator Door (includes Door Gasket) (white) (Replaces: W10573334) |
|
$ 574.93 | |||||
| 2 | WPW10672338 | Handle, Trim (white) (Replaces: W10672338) |
|
Immediately | $ 26.92 | ||||
| 3 | WPW10672333 | Handle, Door (white) (Replaces: W10672333) |
|
Immediately | $ 207.36 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 5 | WP2319265T | Gasket, Door (white) (Replaces: 2264728) |
|
Immediately | $ 210.38 | ||||
| 6 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 108.51 | ||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 114.61 | ||||
| 9 | LW10573340 | Freezer Door (includes Door Gasket) (white) (Replaces: W10573340) |
|
- | |||||
| 10 | W10830984 | Plug, Hole (white) (Replaces: W10663736) |
|
$ 7.54 | |||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 7.33 | |||||
| 12 | WP2319263W | Gasket, Door (white) (Replaces: 2264726) |
|
Immediately | $ 238.68 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 16 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 18 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 65.89 | ||||
| 19 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.80 | ||||
| 10A | W10830983 | Plug, Hole (black) (Replaces: W10663737) |
|
$ 17.59 | |||||
| 12A | WP2319263B | Gasket, Door (black) (Replaces: 2264722) |
|
$ 241.45 | |||||
| 16A | WP2212651 | Plug, Hole (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 19A | 2258681B | Shim, Door Stop (black) |
|
$ 40.80 | |||||
| 1A | LW10570511 | Refrigerator Door (includes Door Gasket) (black) (Replaces: W10570511) |
|
$ 562.23 | |||||
| 2A | W10838316 | Handle, Trim (black) (Replaces: W10672339) |
|
$ 27.97 | |||||
| 3A | WPW10672334 | Handle, Door (black) (Replaces: W10672334) |
|
$ 204.61 | |||||
| 5A | 2319265B | Gasket, Door (black) (Replaces: 2264724) |
|
$ 296.55 | |||||
| 9A | LW10570946 | Freezer Door (includes Door Gasket) (black) (Replaces: W10570946) |
|
$ 535.69 |
