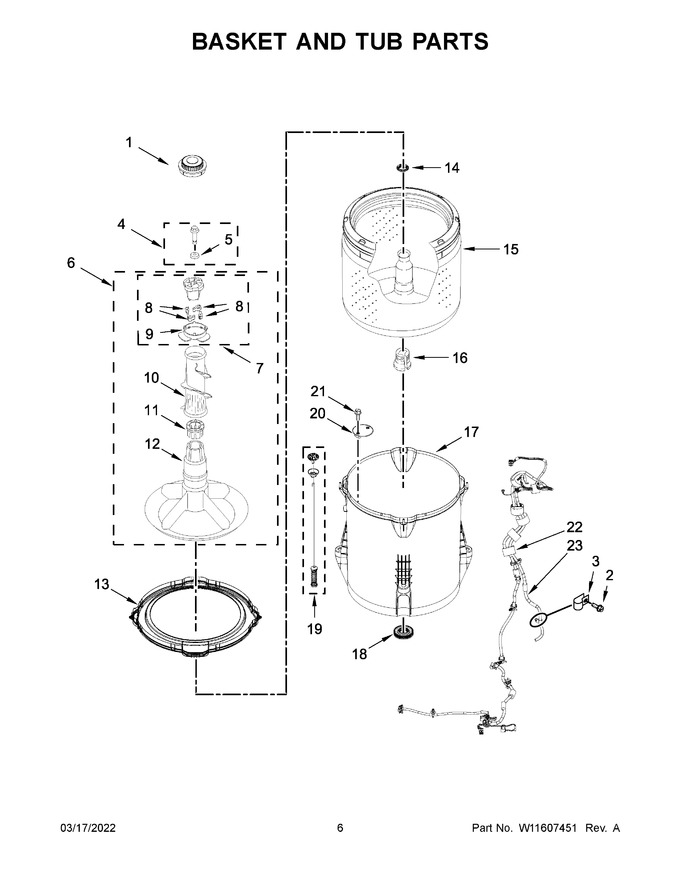

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3355758		Cap, Agitator   (Replaces: 3355758)			Immediately	$ 9.00
2	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
3	W10005430		Clamp, Cable			Immediately	$ 9.53
4	W10772621		Screw And Washer   (Replaces: W10003790)			Immediately	$ 5.24
5	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
6	285565		Agitator (complete)   (Replaces: 3951744)			Immediately	$ 259.89
7	285809		Cam, Driven   (Replaces: 3951682)			Immediately	$ 31.12
8	80040		Dog, Agitator Clutch   (Replaces: 3366877)			Immediately	$ 3.64
9	WP3952374		Bearing, Cam   (Replaces: 3952374)				$ 8.24
10	WP3363003		Mover, Clothes   (Replaces: 3363003)			Immediately	$ 257.52
11	WP3951608		Spacer-thrust   (Replaces: 3951608)			Immediately	$ 7.64
12	WP3951632		Agitator   (Replaces: 3951632)			Immediately	$ 127.99
13	WPW10531289		Ring, Tub   (Replaces: W10531289)			Immediately	$ 137.61
14	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 11.56
15	W10554251		Basket Assembly			Immediately	$ 432.21
16	WP389140		Block, Basket Drive   (Replaces: 389140)			Immediately	$ 27.49
17	W10371566		Tub   (Replaces: W10238320)				$ 356.34
18	W10324647		Seal, Tub   (Replaces: W10580763)			Immediately	$ 93.50
19	W10780045		Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)   (Replaces: W10821951)			Immediately	$ 105.99
20	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 65.26
21	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
22	W11448788		Harness, Lower   (Replaces: W10903246)			Immediately	$ 170.45
23	W10846364		Hose, Pressure Switch   (Replaces: W10520039)			Immediately	$ 22.19
