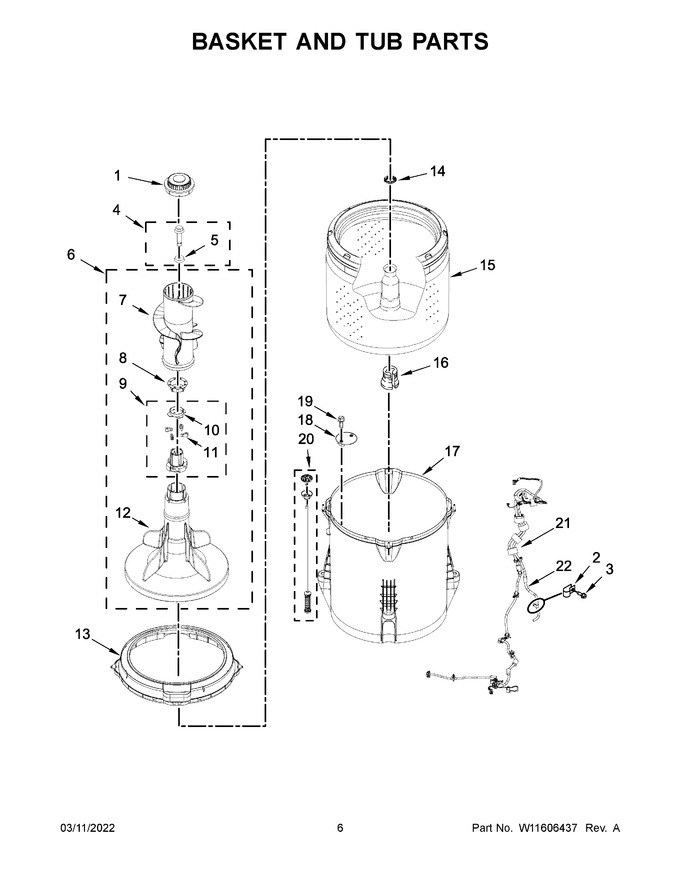

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 9.00 | ||||
| 2 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.08 | ||||
| 3 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.00 | ||||
| 4 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 5.24 | ||||
| 5 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 6 | 285565 | Agitator (complete) (Replaces: 3348117) |
|
Immediately | $ 259.89 | ||||
| 7 | WP3348752 | Mover, Clothes (Replaces: 3348752) |
|
$ 245.21 | |||||
| 8 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 4.42 | ||||
| 9 | 285811 | Cam, Driven (Replaces: 3948431) |
|
Immediately | $ 32.59 | ||||
| 10 | WP3363661 | Bearing, Cam (Replaces: 3363661) |
|
$ 7.84 | |||||
| 11 | 80040 | Dog, Agitator Clutch (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 12 | WP3347288 | Agitator (Replaces: 3347288) |
|
Immediately | $ 137.84 | ||||
| 13 | WPW10531289 | Ring, Tub (Replaces: W10531289) |
|
Immediately | $ 137.61 | ||||
| 14 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.89 | ||||
| 15 | W10554251 | Basket Assembly |
|
Immediately | $ 411.63 | ||||
| 16 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 17 | W10371566 | Tub (Replaces: W10238320) |
|
$ 339.37 | |||||
| 18 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 62.15 | |||||
| 19 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 20 | W10780045 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W10821951) |
|
Immediately | $ 105.99 | ||||
| 21 | W11448788 | Harness, Lower (Replaces: W10903246) |
|
Immediately | $ 162.33 | ||||
| 22 | W10846364 | Hose, Pressure Switch (Replaces: W10520039) |
|
Immediately | $ 22.19 |
