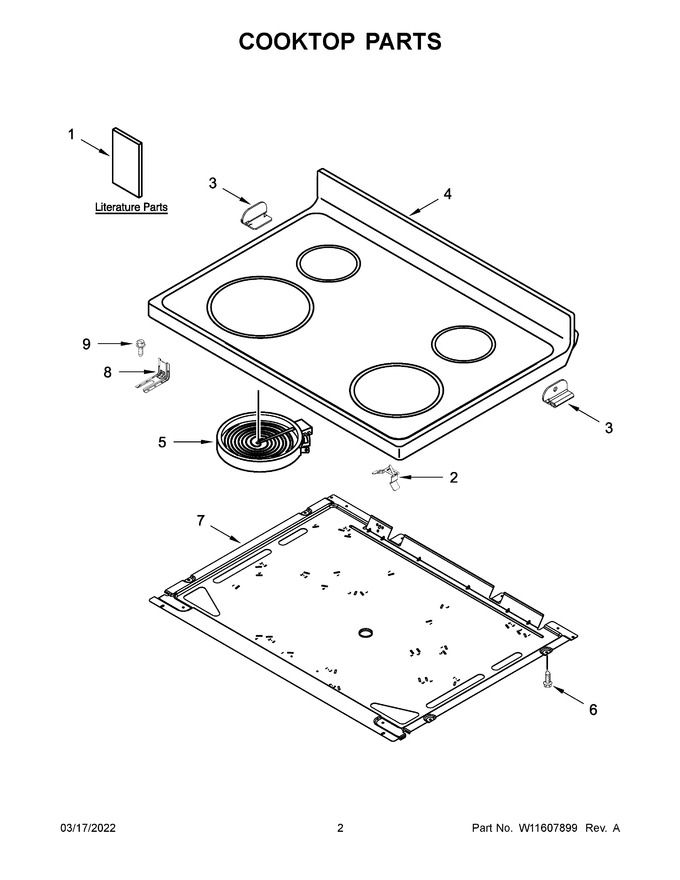

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts ( Not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11509593		Owner's Manual		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11178058		Cooktop (white)   (Replaces: W11034828)				$ 863.40
5	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 134.44
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
8	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
9	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
1A	W11326986		Tech Sheet		Appelez-nous	-
1B	W11326981		Wiring Diagram		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
5A	W11171119		Element (1200w) (right Rear)   (Replaces: W10248261)			Immediately	$ 182.23
5B	W11047722		Element (2500w) (right Front)   (Replaces: 8273992)			Immediately	$ 132.46
NI	NP		Cabinet (not Serviced)		Appelez-nous	-
NI	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)			Immediately	$ 39.67
NI	W11596058		Harness, Cooktop (right)   (Replaces: W11134551)			Immediately	$ 34.76
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W11505297		Harness, Wire (main)				$ 219.53
NI	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 27.02
