View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts

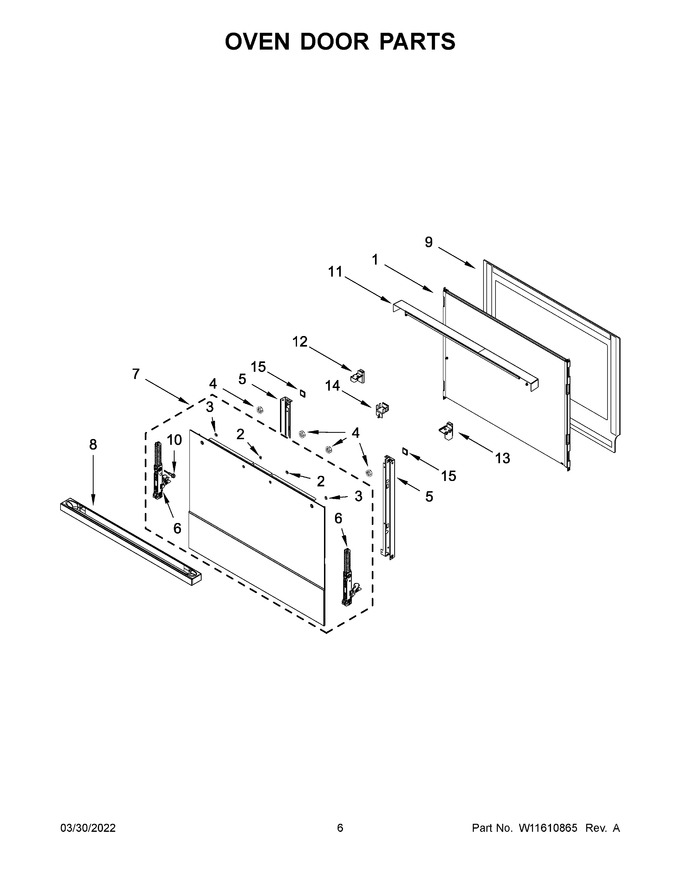

04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11602513 | Air Divider Assembly (Replaces: W11304276) |
|
- | |||||
| 2 | W11132942 | Spacer, Handle |
|
$ 16.83 | |||||
| 3 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 4 | W11602632 | Nut (Replaces: W11317741) |
|
- | |||||
| 5 | W11598126 | Rail, Door (left) (Replaces: W11302773) |
|
$ 43.61 | |||||
| 6 | W11394209 | Hinge, Door (left) |
|
- | |||||
| 7 | W11602616 | Door Assembly (includes Hinges) (black Glass With Stainless Trim) (Replaces: W11304054) |
|
$ 1,252.25 | |||||
| 8 | W11411895 | Assembly, Handle (stainless) |
|
$ 1,095.35 | |||||
| 9 | W11602631 | Glass-door (Replaces: W11260099) |
|
$ 593.07 | |||||
| 10 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 11 | W11597416 | Top Vent Trim Assembly (Replaces: W11428091) |
|
- | |||||
| 12 | W11598130 | Bracket, Glass (left) (Replaces: W11302803) |
|
Immediately | $ 46.95 | ||||
| 13 | W11598128 | Bracket, Glass (right) (Replaces: W11302802) |
|
Immediately | $ 46.95 | ||||
| 14 | W11598131 | Bracket, Glass Reinforcement (Replaces: W11302954) |
|
$ 13.72 | |||||
| 15 | WPW10517428 | Spacer, Vent (Replaces: W10517428) |
|
Immediately | $ 12.44 | ||||
| 5A | W11598127 | Rail, Door (right) (Replaces: W11302780) |
|
$ 43.61 | |||||
| 6A | W11394210 | Hinge, Door (right) |
|
- |
