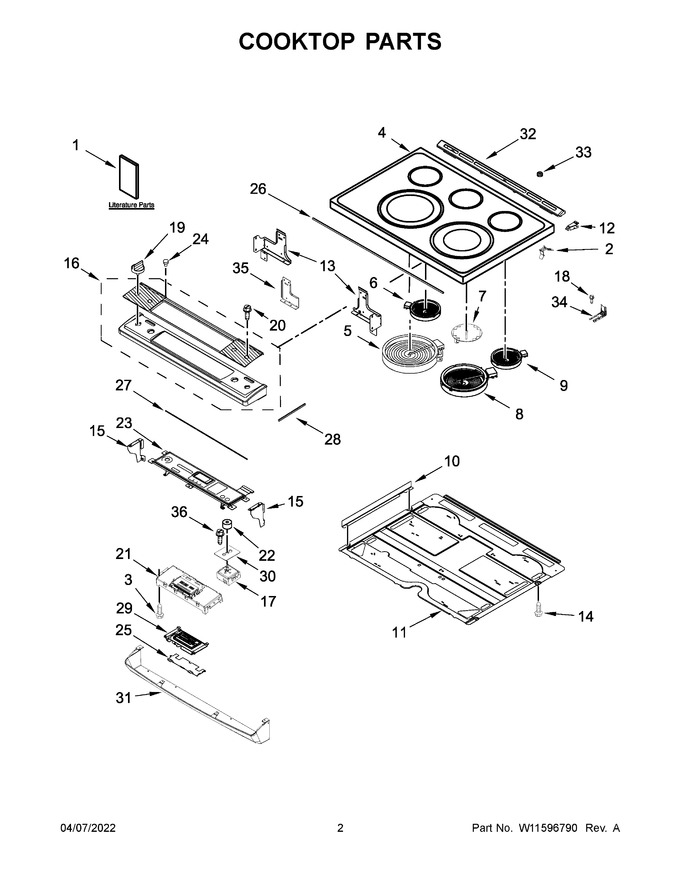

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11509603 | Owners Manual |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10751487 | Cooktop (black) (Replaces: W10668781) |
|
Immediately | $ 692.82 | ||||
| 5 | WPW10275049 | Element (2500/1200w) (left Front) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 6 | WPW10270604 | Element (700w) (left Rear) (Replaces: W10270604) |
|
$ 223.48 | |||||
| 7 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 132.95 | |||||
| 8 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 223.66 | ||||
| 9 | W11171119 | Element (1200w) (left Rear And Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 10 | W11175271 | Bracket, Radiant |
|
$ 77.91 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 181.61 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 16 | W11203729 | Assembly, Console (stainless) (Replaces: W10680368) |
|
Immediately | $ 415.57 | ||||
| 17 | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 18 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 19 | W10876614 | Knob (stainless) |
|
$ 83.38 | |||||
| 20 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 21 | W11594262 | Control, Electronic (mrc2) (Replaces: W11515112) |
|
$ 370.71 | |||||
| 22 | W10702912 | Gasket, Switch Stem |
|
$ 29.82 | |||||
| 23 | W11040816 | Assembly, Overlay (stainless) (Replaces: W10888919) |
|
Immediately | $ 272.97 | ||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 25 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 26 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 27 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 21.33 | |||||
| 28 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 22.92 | |||||
| 29 | W11122852 | Assembly, Display (Replaces: W10759327) |
|
Immediately | $ 527.64 | ||||
| 30 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 31 | W11218703 | Panel, Lower Console (black) (Replaces: W10570527) |
|
Immediately | $ 162.27 | ||||
| 32 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| 33 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 34 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 35 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 36 | W10674068 | Screw |
|
$ 24.39 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 23.22 | |||||
| 17A | WPW10295048 | Switch, Infinite (left Rear) (Replaces: W10295048) |
|
Immediately | $ 159.95 | ||||
| 17B | W10917724 | Switch, Infinite (right Front And Left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 17C | W10911303 | Switch, Infinite (left Rear And Right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 1A | W11326878 | Tech Sheet |
|
- | |||||
| 1B | W11435576 | Quick Start Guide |
|
- | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 20.97 | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 236.93 | ||||
| NI | W11188430 | Harness, Cooktop |
|
$ 241.62 | |||||
| NI | W11207143 | Harness, Console |
|
$ 242.72 | |||||
| NI | W11207139 | Harness, Bake/warm Drawer |
|
$ 228.08 | |||||
| NI | W11454510 | Harness, Main |
|
$ 308.77 |
