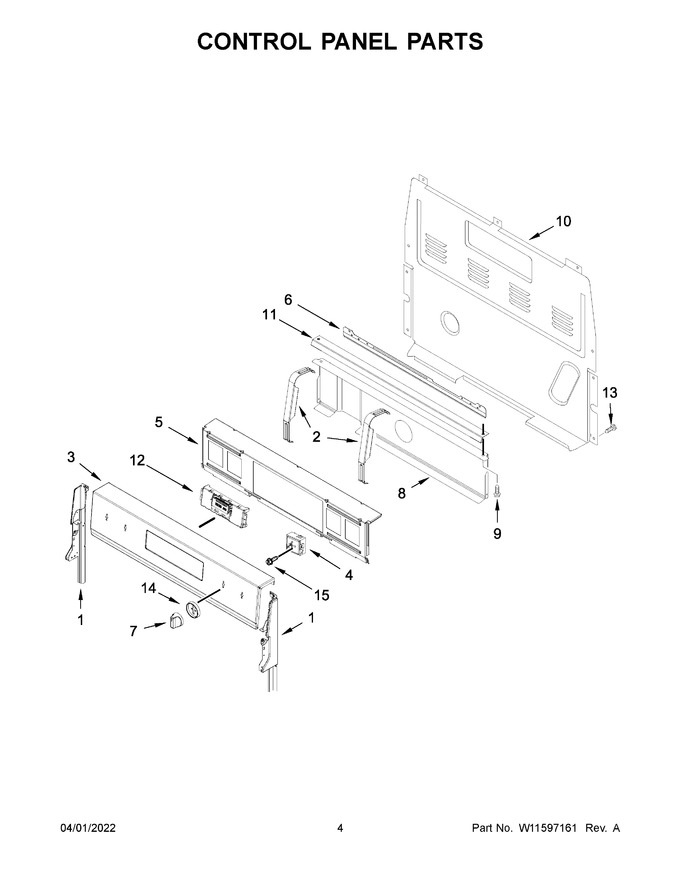

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 347.77
2	W10856361		Bracket, Control		Appelez-nous	-
3	W11105836		Console (black)   (Replaces: W10869983)		Appelez-nous	-
4	W10857622		Switch, Infinite (left Front)   (Replaces: W10437092)			Immediately	$ 211.69
5	W10901802		Panel, Backer				$ 96.79
6	W11443964		Bracket, Eye Brow (black)				$ 222.43
7	W11715915		Knob (black)   (Replaces: W10905965)				$ 42.45
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
12	W11536793		Control, Electronic (lcx) (black)   (Replaces: W11511567)			Immediately	$ 275.61
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	W10905964		Bezel (black)		Appelez-nous	-
15	W11846982		Screw   (Replaces: W10498399)				$ 11.75
14A	W10912200		Bezel (white)				$ 61.05
1A	W11259041		Endcap (white (left))   (Replaces: W11213291)				$ 104.70
1B	W11213292		Endcap (black (right))				$ 71.65
1C	W11259700		Endcap (white (right))   (Replaces: W11213293)				$ 104.70
3A	W11105827		Console (white)   (Replaces: W10869984)				$ 515.16
4A	W10911303		Switch, Infinite (left Rear And Right Rear)   (Replaces: W10578768)			Immediately	$ 104.64
4B	W10917724		Switch, Infinite (right Front And Left Rear)   (Replaces: W10437094)			Immediately	$ 129.35
6A	W11443963		Bracket, Eye Brow (white)				$ 223.30
7A	W11613600		Knob (white)   (Replaces: W11027257)			Immediately	$ 48.10
