SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Optional Parts (not Included)

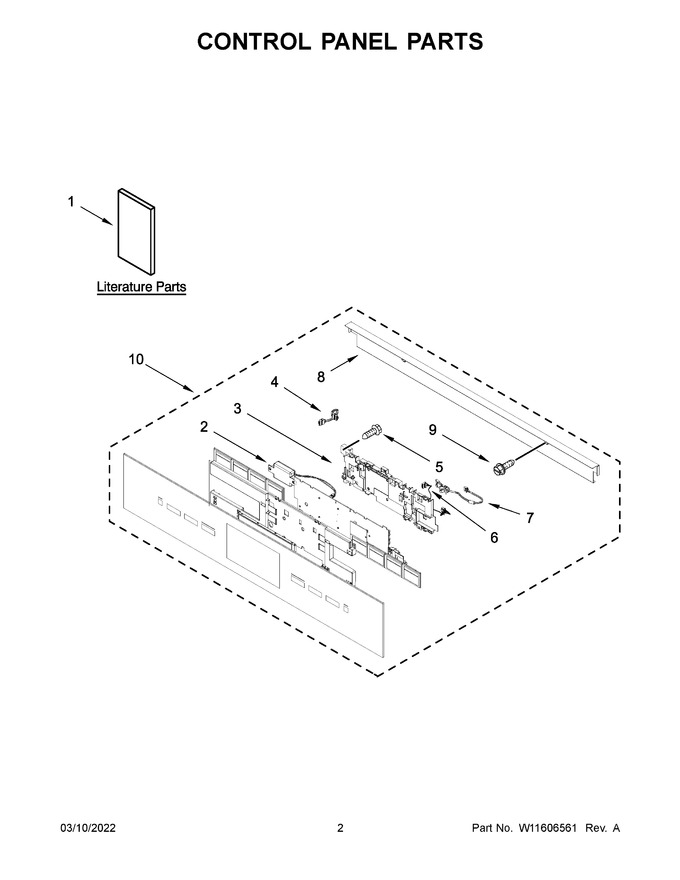

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11340511		Owner's Manual		Appelez-nous	-
2	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
3	W10668510		Housing				$ 105.17
4	W10566973		Harness, Keypad (left To Center)				$ 82.19
5	W10489172		Screw				$ 11.98
6	W10524350		Harness, Keypad (right To Center)				$ 78.21
7	W10575307		Jumper Harness, Power Supply			Immediately	$ 173.84
8	W10444127		Cover, 30" Compliment				$ 130.73
9	7101P42660		Screw		Appelez-nous	-
10	W11598166		Assembly, Control Panel (black)   (Replaces: W11301921)				$ 1,722.79
1A	W11423731		Quick Start Guide		Appelez-nous	-
1B	W11399175		Tech Sheet		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11598162		Bag, Hardware   (Replaces: W11394925)				$ 15.61
NI	W11555167		Harness, Communication				$ 69.94
NI	W11578578		Harness, Interlock   (Replaces: W11555168)			Immediately	$ 127.79
NI	W11578580		Jumper Harness, Communication   (Replaces: W11539527)				$ 30.24
NI	W11539494		Harness, Inverter				$ 43.39
NI	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 78.88
NI	W11356992		Conduit				$ 223.29
NI	W11356977		Harness, Cable Tree Assembly				$ 85.07
NI	W11226264		Strap, Ground		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
