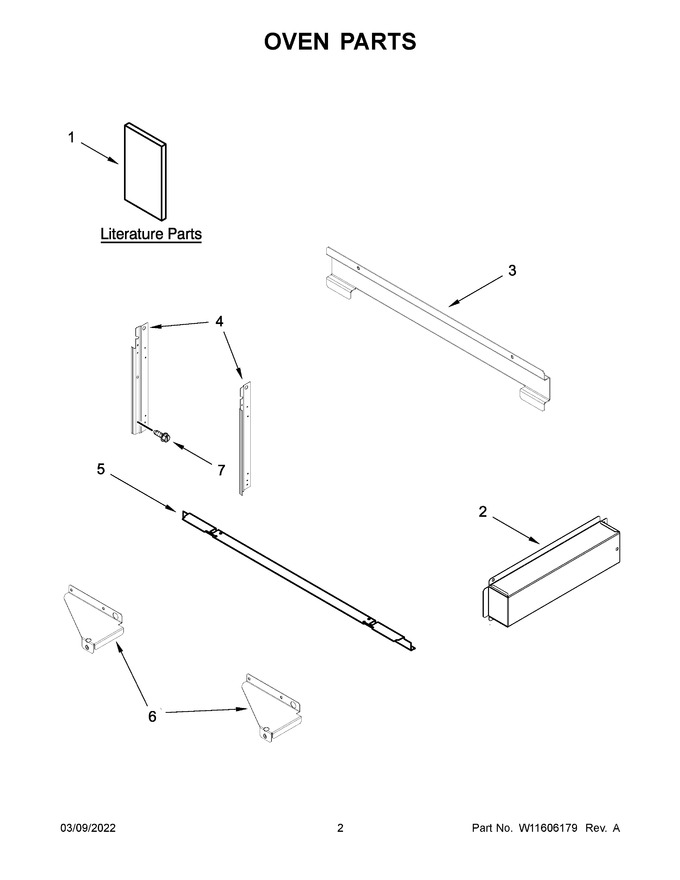

02 - Oven Parts


03 - Control Panel Parts


04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11340511		Owner's Manual		Appelez-nous	-
2	W10239155		Box, Conduit				$ 103.20
3	W11673269		Support, Microwave Module   (Replaces: W10420960)			Immediately	$ 69.92
4	W11627410		Rail, Side (left)   (Replaces: W11235470)				$ 61.70
5	W11676904		Trim, Bottom (black)   (Replaces: W11312201)			Immediately	$ 366.30
6	W10239156		Bracket, Lower (left)				$ 21.24
7	7101P65360		Screw		Appelez-nous	-
1A	W11423731		Quick Start Guide		Appelez-nous	-
1B	W11399175		Tech Sheet		Appelez-nous	-
4A	W11627411		Rail, Side (right)   (Replaces: W11235471)				$ 59.61
6A	W10239157		Bracket, Lower (right)				$ 20.73
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11598162		Bag, Hardware   (Replaces: W11394925)				$ 15.61
NI	W11555167		Harness, Communication				$ 69.94
NI	W11578578		Harness, Interlock   (Replaces: W11555168)			Immediately	$ 127.79
NI	W11578580		Jumper Harness, Communication   (Replaces: W11539527)				$ 30.24
NI	W11539494		Harness, Inverter				$ 43.39
NI	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 78.88
NI	W11356992		Conduit				$ 223.29
NI	W11356977		Harness, Cable Tree Assembly				$ 85.07
NI	W11226264		Strap, Ground		Appelez-nous	-
