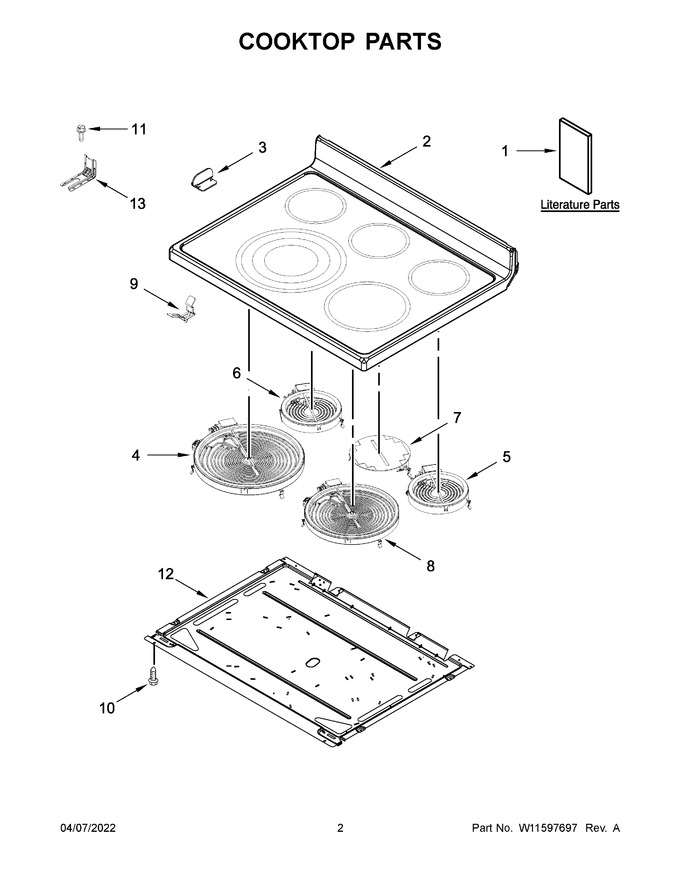

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11432242		Owners Manual (tech Sheet)		Appelez-nous	-
2	W10872562		Cooktop (black)   (Replaces: W10828424)			Immediately	$ 729.90
3	W10607641		Bracket, Cooktop (left)				$ 30.17
4	W11563195		Element (3000w) (left Front)   (Replaces: W11318371)			Immediately	$ 225.97
5	W11171119		Element (1200w) (right Front And Left Rear)   (Replaces: W10248261)			Immediately	$ 213.20
6	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 159.19
7	W11041453		Element, Warm Zone   (Replaces: W10799048)				$ 119.66
8	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 132.01
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.82
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
13	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
1A	W11503313		Tech Sheet		Appelez-nous	-
1B	W11435579		Quick Start Guide		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W11212183		Harness, Sensor				$ 212.08
NI	W11134592		Harness, Warm Zone				$ 105.53
NI	W11190447		Harness, Cooktop (left)			Immediately	$ 179.81
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 192.83
NI	W11766526		Harness, Main   (Replaces: W11488388)				$ 218.10
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
