01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

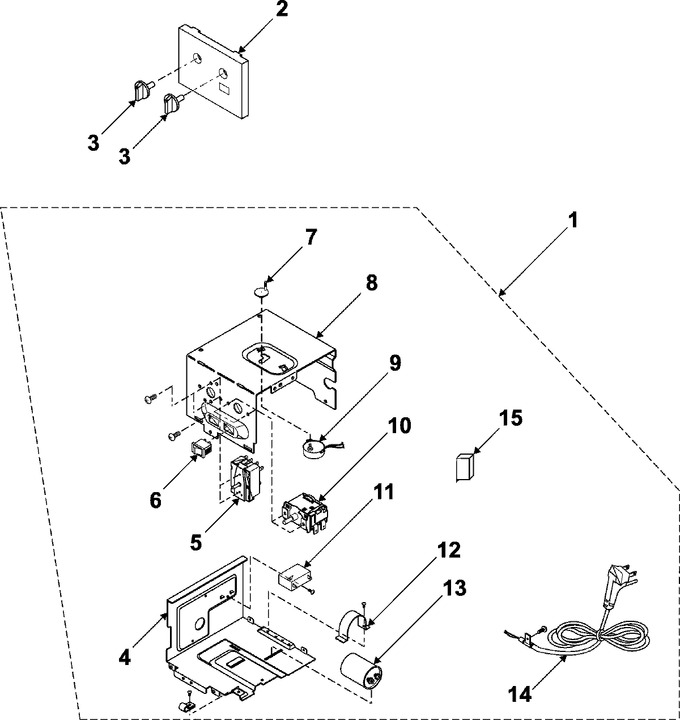

| 1 | DB93-02692A | Assy Control-box;co,-,24k,aw24 |
|
- | |||||
| 2 | DB64-01098A | Panel Control-m;h3-p/j,abs,t2. |
|
- | |||||
| 3 | DB94-00528D | Assy-knob Thermo;aw2402m,sc-94 |
|
- | |||||
| 4 | DB61-00417A | Case Control-low |
|
- | |||||
| 5 | DB47-20074D | Thermostat |
|
$ 101.42 | |||||
| 6 | 3401-001030 | Switch-toggle |
|
- | |||||
| 7 | DB66-00490A | Arm-blade;h3-p/j,pom,-,-,-,-,b |
|
- | |||||
| 8 | Y00000000 | See Note Part No. Db61-01497a Currently Not Available. |
|
- | |||||
| 9 | DB95-20065F | Assy-motor Swing |
|
- | |||||
| 10 | 3406-001045 | Switch, Rotary (240v) |
|
$ 47.74 | |||||
| 11 | 2301-001449 | C-film,mpe-ppf |
|
- | |||||
| 12 | DB65-10008B | Clip-capacitor |
|
- | |||||
| 13 | 2501-001238 | Capacitor (oil) |
|
- | |||||
| 14 | DB39-00200B | Power Cord-assy |
|
- | |||||
| 15 | 3501-001026 | Relay-power |
|
- |
