01 - Cover Sheet

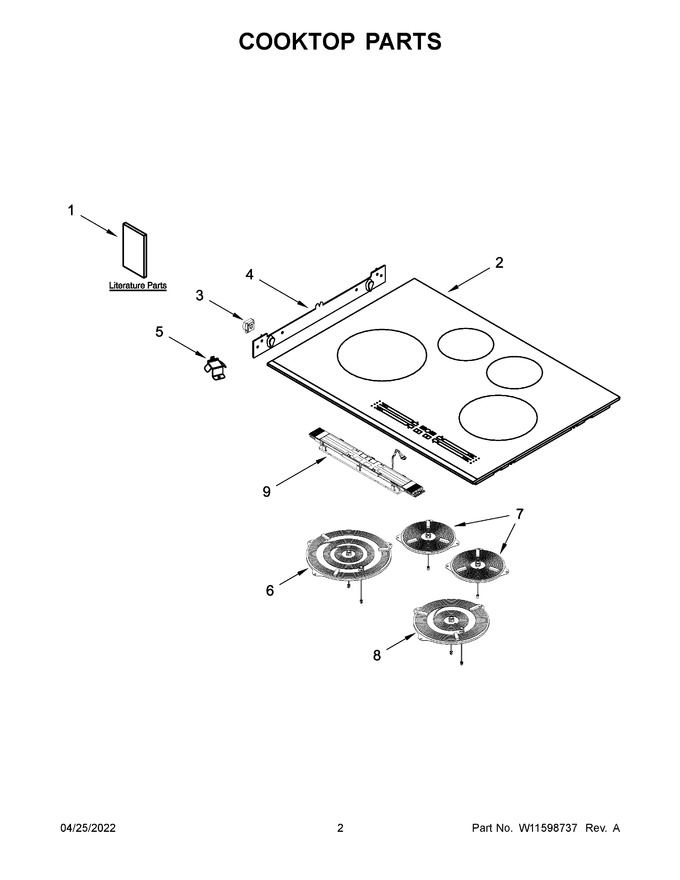

02 - Cooktop Parts
03 - Interior Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11362912 | Installation Instructions |
|
- | |||||
| 2 | W11495631 | Cooktop, Glass (includes Stainless Trim) (Replaces: W11266244) |
|
$ 687.11 | |||||
| 3 | W11495019 | Cooktop Spring (Replaces: W11279477) |
|
Immediately | $ 40.26 | ||||
| 4 | W11495626 | Cooktop Support Bracket (Replaces: W11279478) |
|
Immediately | $ 85.59 | ||||
| 5 | W11302457 | Filter Support |
|
- | |||||
| 6 | W11595236 | Element (6.25 Inch) (left Front) (Replaces: W11429954) |
|
$ 345.99 | |||||
| 7 | W11560534 | Element (4 Inch) (left Rear & Right Rear) (Replaces: W11429950) |
|
Immediately | $ 198.51 | ||||
| 8 | W11586461 | Element (6 Inch) (right Front) (Replaces: W11429952) |
|
Immediately | $ 225.06 | ||||
| 9 | W11595237 | Hmi Board (Replaces: W11524571) |
|
$ 412.05 | |||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11362923 | Owner's Manual |
|
- | |||||
| 1C | W11362960 | Tech Sheet |
|
- |
